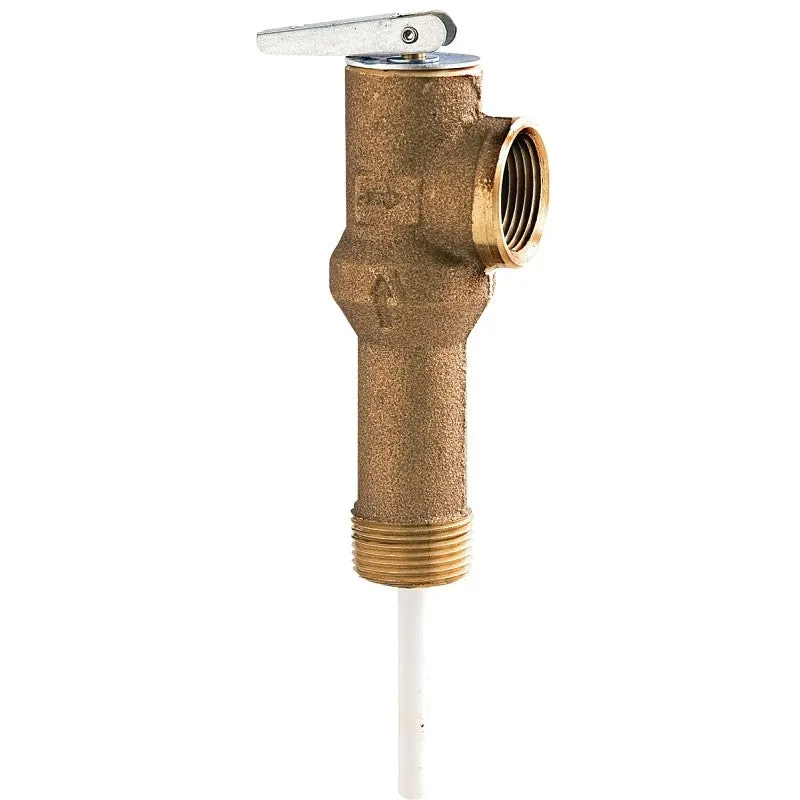

Used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 Btu/hr. Features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. ASME rated and CSA listed. Temperature relief is 210 deg F (99 deg C), Pressure relief range is 75 to 150psi (5.2 to 10.3 bar).
Product specification\n\n
\n
| Brand | Watts |
|---|---|
| UPC | 098268871319 |
| Model Number | LL100XL-150/210 |
| Application | For water heater and hot water storage tank |
| Feature | Thermo-bonded, non-metallic protective coating on thermostat |
| Category | PLUMBING |
| Additional Category | Pressure Relief Valves |
| Length | 10.25 |
| Width | 7.125 |
| Height | 11.5 |
| Weight | 0.62 |
