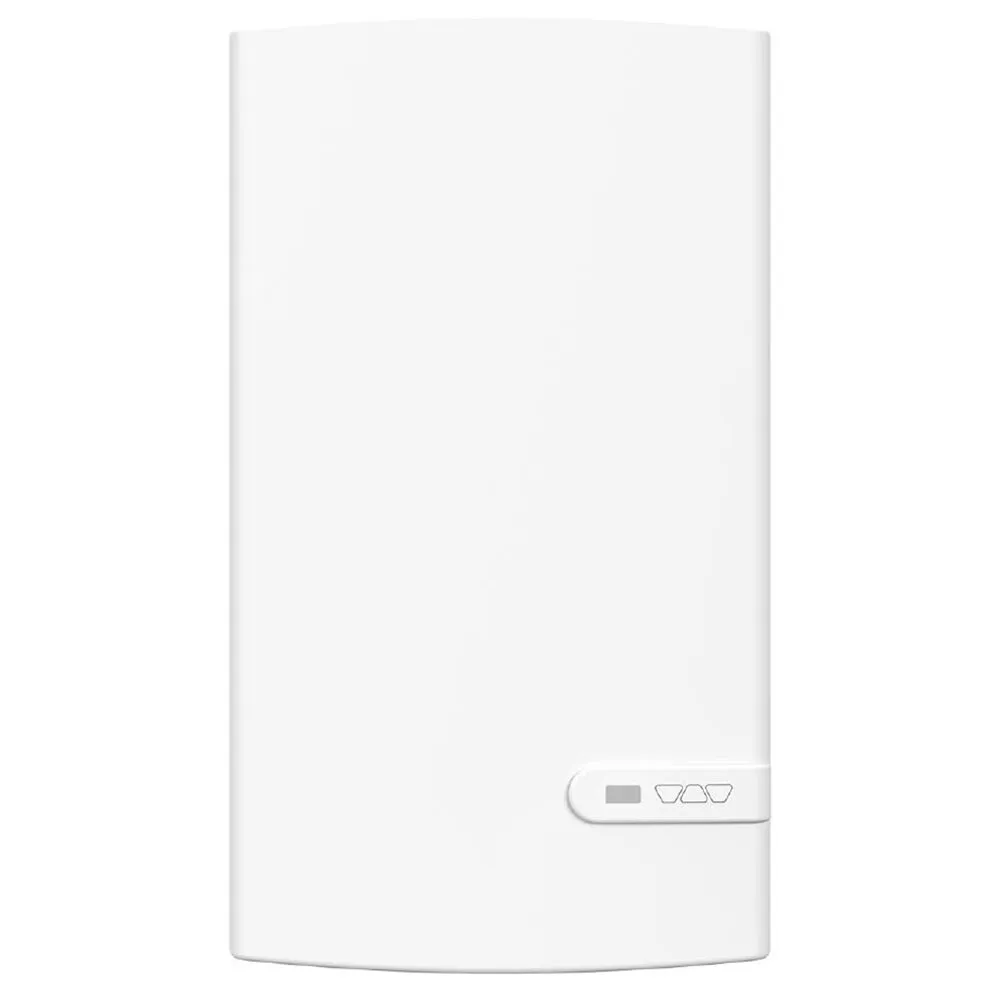

Schluter DITRA-HEAT-E-RRS is a power module that extends power output when used in conjunction exclusively with the DITRA-HEAT-E-RS1 smart thermostat.
The DITRA-HEAT-E-RRS power module can only be used in conjunction with the DITRA-HEAT-E-RS1 thermostats. The power module is used when the heating load exceeds 15 amps (e.g., in large floor applications) to maintain a single point of control.
No more than 10 DITRA-HEAT-E-RRS power modules should be connected in a series to a single DITRA-HEAT-E-RS1 thermostat; however, that number may decrease depending on the application. The goal is to eliminate any uneven temperatures in a large room which may present various heat loss characteristics (e.g., a below grade application with 1 thermostat and 3 power modules can cover over 1100 square feet. The initial temperature from one end of the application to the other may vary).
Schluter DITRA-HEAT-E-RRS Power Module Features:
For large area installations, extends the power output by 15 Amps
Controlled by DITRA-HEAT-E-RS1 smart thermostat via low voltage 2 conductor 20 AWG signal wire
Supports 120 V and 240 V cables
Built in Class A GFCI\n\n
\n
| SKU | S DHE RR 2/BW |
|---|---|
| UPC | 4011832202605 |
| Non-Returnable | No |
| Manufacturer | Schluter |
| Manufacturer Part Number | DHERR2/BW |
| Voltage | 120/240 |
| Weight (lbs.) | 0.51 |
| Dimensions (L x W x H) | 3.94″ x 3.15″ x 5.91″ |
