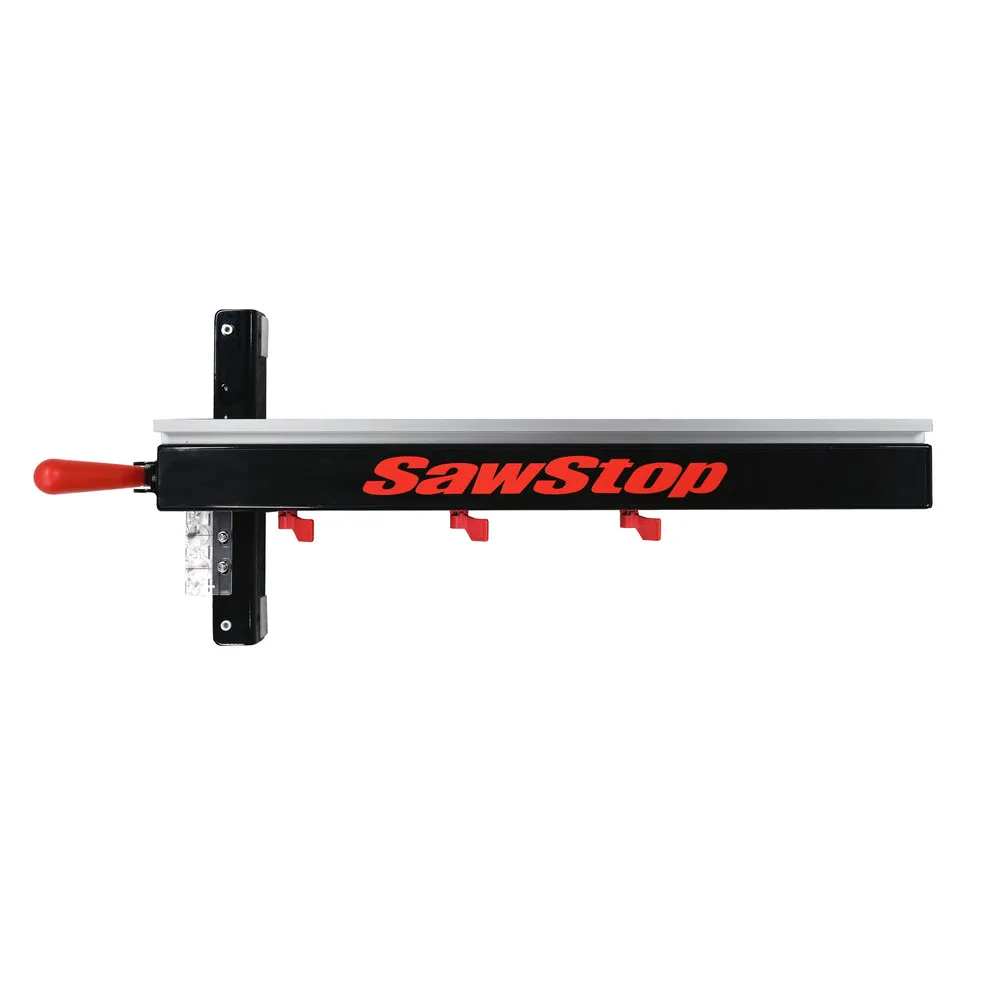

For Cabinet and Contractor Saws
Whether you buy the T-Glide Advance with a brand new table saw or simply as an upgrade to your existing saw, you’ll enjoy the many benefits this new fence provides.
Standard Equipment:
(1) T-Glide Advance Fence (ATGP-FA)
(2) Dovetail Sliding Wedges
(1) Hex Wrench
Specifications:
Overall Dimensions: 41″ L x 16″ W x 5″ H
Aluminum Fence Face Dimensions: 34-3/4″ L x 1-1/8″ W x 2-3/4″ H
Tube Dimensions: 35″ L x 3″ W x 2″ H
Slot: 5/16″ Wide at Narrow Point; 1/2″ Wide at Widest Point
Requires: T-Glide Fence Rails
Weight: 22 Lbs
Features:
Compatible with the SawStop Professional Cabinet Saw (PCS) and Contractor Saw (CNS)
Fits onto existing SawStop T-Glide fence rails with no conversion or modification needed. Locks parallel to the blade, once aligned
Dovetail-shaped slot for mounting feather boards, sacrificial fences, and other accessories and jigs
Dead-flat aluminum fence face won’t warp over time
Hi-Low aluminum fence face for use in two positions
Fence face slides forward and back, allowing you to use the tail end as a stop block for making crosscuts without pinching the offcuts between the fence and blade
Separate scale indicators for high and low fence positions ensure can’t-miss accuracy
Rollers at the tail end of the tube glide smoothly across the tabletop, reducing wear marks in the cast iron
Reversible fence face can be swapped to the right side of the T-Glide tube for use on the left side of the blade
