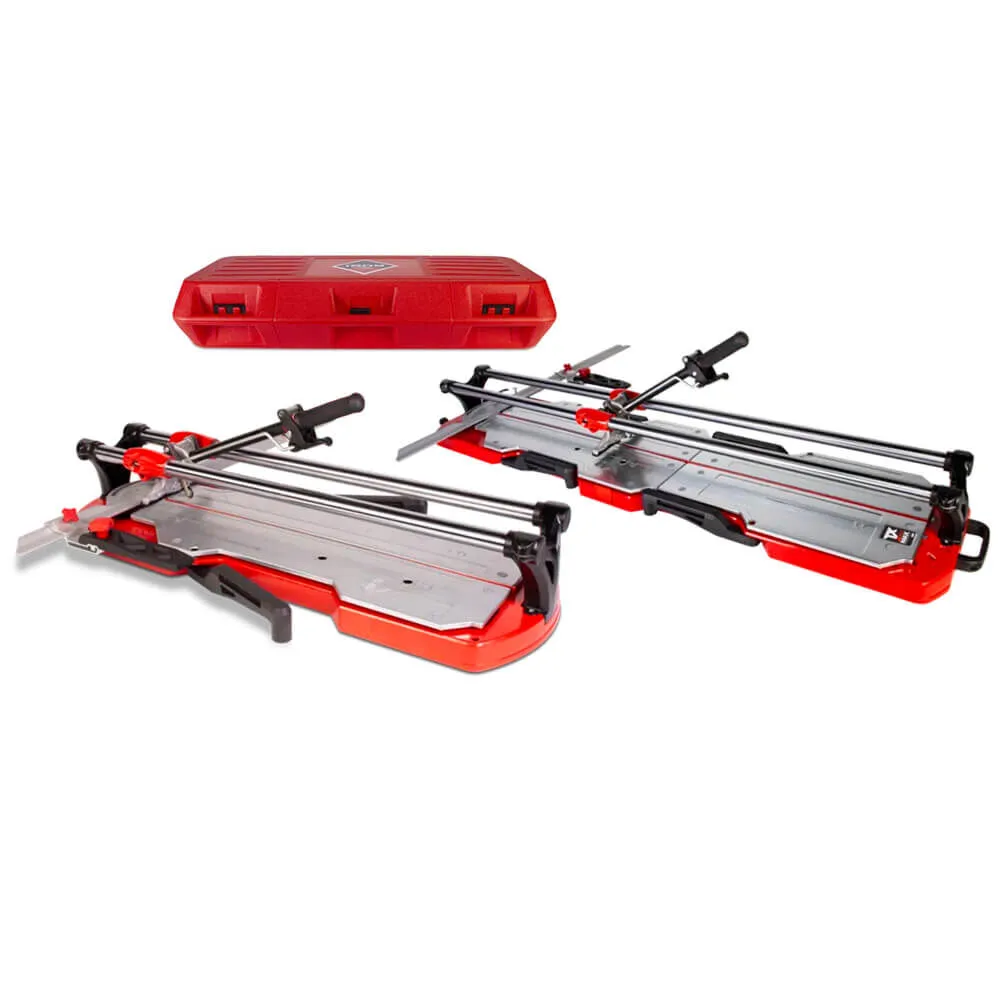

Rubi TX-MAX Tile Cutters — Heavy-Duty Professional Manual Tile Cutter Series
The Rubi Tools TX-MAX Series Professional Manual Tile Cutters are designed for tile installers who demand maximum power, precision, and durability when working with today’s toughest ceramic materials. Built for intensive professional use, the TX-MAX series excels in cutting porcelain stoneware and extruded stoneware with consistency and control.
At the core of the TX-MAX system is its high-performance multipoint separator, delivering up to 2,645 lbs of breaking power while remaining easy to operate with one hand. The ratchet and trigger mechanism enables fast locking and release of the separator, improving workflow efficiency across both thin and thick materials.
The rotating square system allows precise angular cuts from 0° to 45°, while the advanced head and rivet positioning improves scoring line visibility for greater accuracy. Heavy-duty 30 mm tubular steel guides combined with extra-long aluminum slides provide outstanding rigidity and stability, even on large-format tiles.
To support demanding installations, TX-MAX cutters feature a floating table system with expandable side arms, ensuring stability during breaking operations. Each model is supplied with two scoring wheels and a protective transport case, with the TX-1250 MAX offering enhanced mobility through integrated wheels and handle.
Key Features and Benefits
Designed for Intensive Professional Use — Ideal for continuous cutting of all ceramic tiles, especially porcelain stoneware (AIa / BIa) and extruded stoneware
High-Performance Multipoint Separator — Advanced separator system provides exceptional breaking efficiency and clean cuts across varying tile thicknesses
Extreme Breaking Power — Delivers up to 2,645 lbs (1,200 kg) of breaking force for reliable performance on dense materials
One-Handed Operation System — Ratchet and trigger mechanism allows easy locking and unlocking of the separator using one hand, increasing productivity
Precision Rotating Square — Rotating square system enables fast and accurate angle cuts from 0° to 45°
Optimized Scoring Visibility — Advanced rivet position improves visibility during scoring and separation for higher cutting accuracy
Protective Anti-Marking Gripper — Removable protective insert allows safe cutting of delicate or polished surfaces without surface damage
Heavy-Duty Steel Guide System — 30 mm diameter tubular steel guides ensure exceptional rigidity, torsional resistance, and long-term durability
Extra-Long Aluminum Slides — Extended aluminum slides enhance structural stability, particularly on large-capacity models
Floating Table with Side Supports — Floating base improves breaking efficiency; additional aluminum arms provide support for large-format tiles
TX 710 / TX 1020: 2 side arms
TX 1250: 4 side arms
Repetitive Cut Lateral Stop — Integrated lateral stop ensures fast, precise repetitive cuts and narrow strip cutting
Multiple Scoring Wheels Included — Supplied with 8 mm and 22 mm EXTREME scoring wheels; compatible with the full Rubi PLUS wheel range
Transport-Ready Design — All models include a reinforced suitcase-style carrying case; TX-1250 MAX also features wheels and carrying handle for easier mobility
Specifications
Downloads
SKU
RUBI-TX-MAX
In the Box
Rubi TX Max Tile Cutter
With 5/16″(8mm) & 3/4″(18mm) scoring wheels.
Manual
Manufacturer
Rubi Tools
Dimensions (L x W x H)
41.41″ x 18.03″ x 7.59″ – 66.99″ x 18.03″ x 7.59″
Max Length of Cut (in.)
27 15/16″ / 36 5/8″ / 49 3/16″
Weight (lbs.)
41.89 – 62.83\n\n
\n
| Part # | 17910 |
|---|---|
| Cutting length (in) | 27 |
| Diagonal cutting length (in) | 19-5/8 x 19-5/8 |
| Cutting height (in) | 1/8 – 7/8 |
| Separator power (lb) | 2645.52 |
| Weight with carrying case (lb) | 29.32 |
