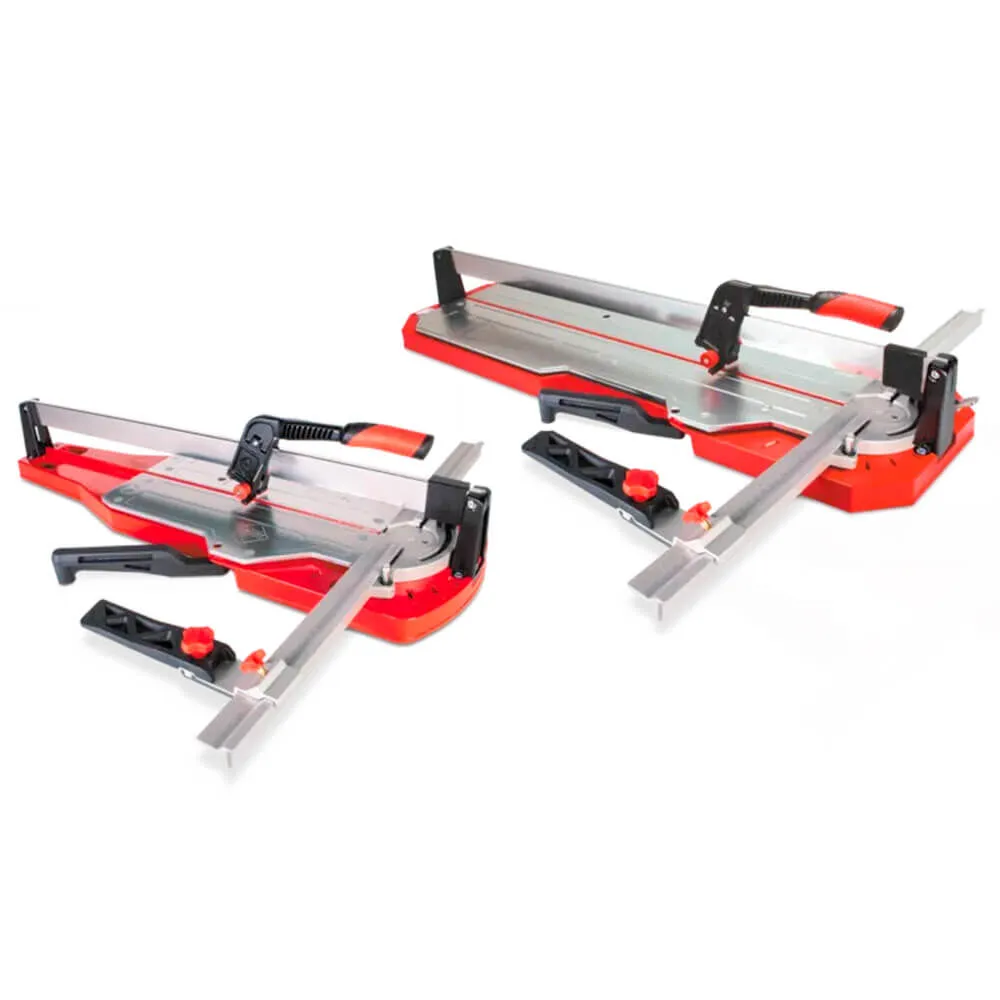

Rubi TP-T PULL Tile Cutters — Professional Manual Porcelain Tile Cutter
The Rubi Tools TP-T PULL Series Manual Tile Cutters are designed to meet the demands of professional tile installers who require a powerful, precise, and ergonomic cutting solution for intensive ceramic and porcelain tile work.
The highly impact-resistant single guide system delivers long-term durability and consistent cutting accuracy, even under heavy jobsite use. Unlike traditional push-style cutters, the TP-T PULL series is operated from behind the machine, using an ergonomic pull handle that increases working speed and control.
A retractable breaker with up to 2204.6 lbs of breaking power allows clean separation of tiles with thicknesses from 13/64″ to 25/32″. The mobile breaker design ensures superior results on diagonal and angular cuts, while the central-pivot swivel square and laser-engraved measuring guides provide fast, precise angle and repetitive cuts.
The reinforced two-layer aluminum base with shock absorption and lateral supports ensures stability when working with large-format tiles. Supplied with a durable 7/8″ tungsten carbide scoring wheel, the TP-T series offers a versatile, low-maintenance, and highly efficient cutting system for professional installations.
Key Features and Benefits
Designed for Intensive Professional Use — Ideal for continuous cutting of all types of ceramic tiles and high-performance porcelain tiles (BIa)
Single Guide Monoguide System — Highly impact-resistant guide system provides exceptional rigidity, accuracy, and long service life
Pull-Handle Ergonomic Design — Optimized for pulling rather than pushing, allowing the operator to work behind the cutter for greater control and reduced fatigue
High-Power Retractable Breaker — Delivers up to 2204.6 lbs (1000 kg) of breaking force and handles tile thicknesses from 13/64″ to 25/32″
Mobile Breaker for Angle Cuts — Mobile breaker assembly ensures clean, high-quality diagonal and angular cuts
Precision Swivel Square — Central-pivot swivel square allows fast and accurate angular cuts with excellent repeatability
Repetitive Cut Lateral Stop — Laser-engraved square and lateral stop ensure fast, precise repetitive cuts
Reinforced Floating Base — Two-layer aluminum base with shock absorption enhances breaking efficiency and tile protection
Large Format Tile Support — Integrated lateral supports improve stability when cutting large tiles
Long-Lasting Scoring Wheel — Equipped with a 7/8″ tungsten carbide scoring wheel, offering excellent versatility across ceramic materials
Low Maintenance Design — Guide system requires no lubrication, reducing maintenance and downtime
Specifications
Downloads
SKU
RUBI-TPT
Manufacturer
Rubi Tools
Warranty
5 year limited warranty
Dimensions (L x W x H)
36″ x 13″ x 9″ – 45″ x 13″ x 9″
Max Depth of Cut (in)
13/16″
Weight (lbs.)
25.0 – 37.03\n\n
\n
| Part # | 12917 |
|---|---|
| Cutting length (in) | 25 |
| Diagonal cutting length (in) | 18-1/8 x 18-1/8 |
| Cutting height (in) | 1/4 – 3/4 |
| Separator power (lb) | 2204.6 |
| Net weight without packaging (lb) | 25.35 |
