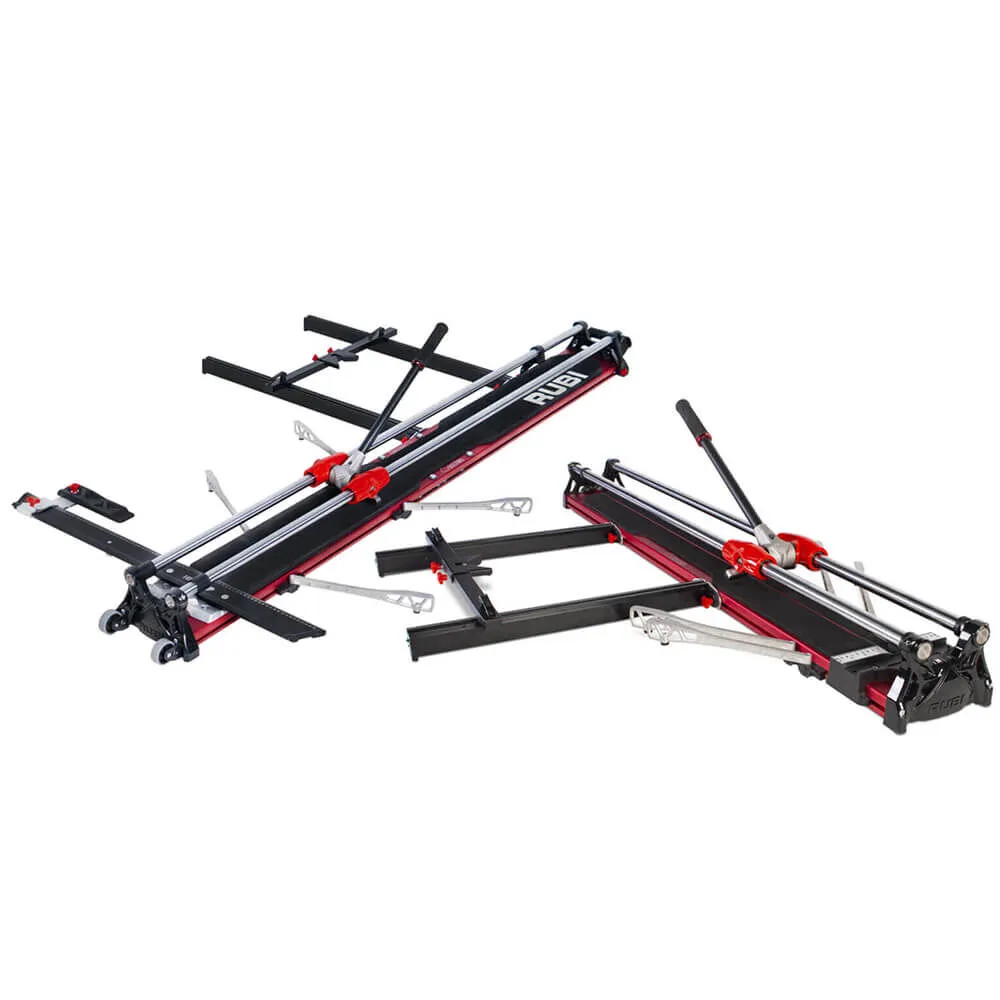

Rubi HIT-PLUS Large Format Manual Tile Cutter — Professional Ceramic Tile Cutter
The Rubi Tools HIT-PLUS Large Format Manual Tile Cutter is engineered for professional installers who demand strength, precision, and efficiency when cutting large-format ceramic and porcelain tiles. Designed for frequent use, the HIT-PLUS combines a reinforced aluminum structure with advanced cutting mechanics to handle tough materials with confidence.
Its MAGNET system allows one-handed locking and unlocking of the handle, improving speed and control during both scoring and separation. Ball-bearing slides provide smooth, effortless scoring, while the forward-positioned scoring wheel ensures full visibility of the cutting line for maximum accuracy.
The closed-structure aluminum base and 25 mm chrome-plated steel guides deliver exceptional rigidity and resistance to torsion. A high-performance mobile separator ensures clean breaks, even on dense porcelain stoneware. Additional aluminum arms, double ceramic supports, and a reinforced square with side stop make the HIT-PLUS ideal for repetitive cuts, angled cuts, and large-format tiles.
Supplied with a 22 mm Extreme scoring wheel and compatible with a wide range of wheel sizes, the Rubi HIT-PLUS is a powerful, ergonomic, and dependable cutting solution for demanding professional environments.
Key Features and Benefits
Built for Large-Format and Heavy-Duty Use — Ideal for frequent cutting of ceramic tile, porcelain stoneware, and glazed tiles
MAGNET One-Hand Operating System — Magnetic locking and unlocking of the handle allows faster operation and improved cutting accuracy
Smooth Ball-Bearing Slide System — Slide set with ball bearings ensures soft, smooth scoring with minimal effort
Full Visibility Scoring Area — Advanced scoring wheel position in front of the gripper provides clear line-of-sight during cutting
Reinforced Aluminum Extrusion Base — Closed-structure aluminum base delivers increased rigidity and higher breaking capacity
High-Performance Mobile Separator — Powerful separator ensures clean, controlled tile breaking, even on hard porcelain
Chrome-Plated Steel Guides — 25 mm rectified steel guides with anti-corrosion treatment offer superior resistance to torsion
Precision Measuring and Repetitive Cuts — Reinforced square with side stop enables fast repetitive cuts and accurate 45° angles
Large Format Tile Support — Includes four additional aluminum arms and double ceramic supports, plus a supplement for 45° cuts
Ergonomic Soft-Grip Handle — Comfortable handle design reduces fatigue during extended cutting sessions
Wide Scoring Wheel Compatibility — Supports multiple scoring wheel sizes (6–22 mm); includes 22 mm Extreme scoring wheel
Easy Transport — Equipped with wheels and a carry handle for improved mobility on the job site
Specifications
Downloads
SKU
RUBI HIT-PLUS
In the Box
(1) HIT-PLUS Tile Cutter
(1) 7/8″ (22mm) Extreme Scoring Wheel ( 01907 )
Manufacturer
Rubi Tools
Max Length of Cut (in.)
47-1/4″ – 70-7/8″
Max Depth of Cut (in)
1/8″ – 3/4″
Diagonally Cuts (in.)
33-1/2″ x 33-1/2″ – 50″ x 50″
Weight (lbs.)
48.3 – 60.1\n\n
\n
| Part # | 27900 |
|---|---|
| Cutting length (in) | 47-1/4 |
| Diagonal cutting length (in) | 33-1/2 x 33-1/2 |
| Cutting height (in) | 1/8 – 3/4 |
| Separator power (lb) | 1984.14 |
