Standard Equipment:

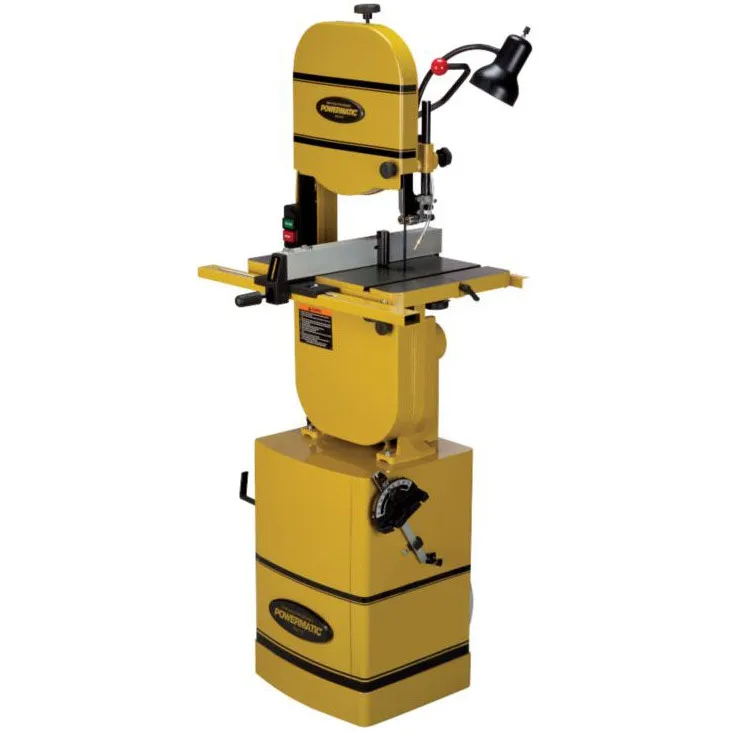

PWBS-14CS Bandsaw – 1791216K
CARTER Quick Tension Release
Adjustable Miter Gauge
T-Style Rip Fence with Resaw Assembly
1/4-in Band Saw Blade
Gooseneck Work Light
Chip Blower
1791217 – Riser Block
Optional Accessories:
Band Saw Blades
Specifications:
Band Saw Size/Wheel Diameter: 14″
Cutting Capacity Width: 13-1/2″
Cutting Capacity Height: 6″
Blade Length: 93-1/2″
Blade Speed: 3,000 SFPM
Table Size (L x W): 15″ x 15″
Table w/Extension (L x W): 15″x20-1/2″
Table Height from Floor: 44″
Maximum Saw Blade Width: 3/4″
Minimum Saw Blade Width: 1/8″
Table Tilt: 10° Left, 45° Right
Dust Port Outside Diameter: 4″
Motor Power: 1-1/2 HP
Motor Phase: Single
Motor Voltage: 115V, 230V
Prewired Voltage: 115V
Motor Current: 11A, 5-1/2A
Weight: 203 lbs
Features:
CARTER quick-tension release lever with full tension and blade release levels.
With a powerful 1-1/2 HP TEFC motor and a wide Poly-V belt, full power is transferred from the motor to the drive wheel.
Features a durable micro-adjustable dual bearing blade guide system above and below the table.
Extra-large, two-piece cast-iron table consists of a 15-in x 20-7/8-in tilting (45 degrees right and 10 degrees left) section and a fixed 15-in x 5-in extension for a total working surface of 15-in x 20-in.
Exclusive design, quick-release precision T-square style rip fence with 4-in resaw attachment.
Precision-balanced, nine-spoke cast-iron wheels run smoothly.
Easy-to-read tensioning gauge settings indicated in blade width increments.
Full 6-in under-guide capacity with 13-1/2-in width capacity.
60 Watt lamp built into the body provides direct light on the blade and workpiece while cutting (bulb not included).
Chip blower ensures a clean, visible cut line.
