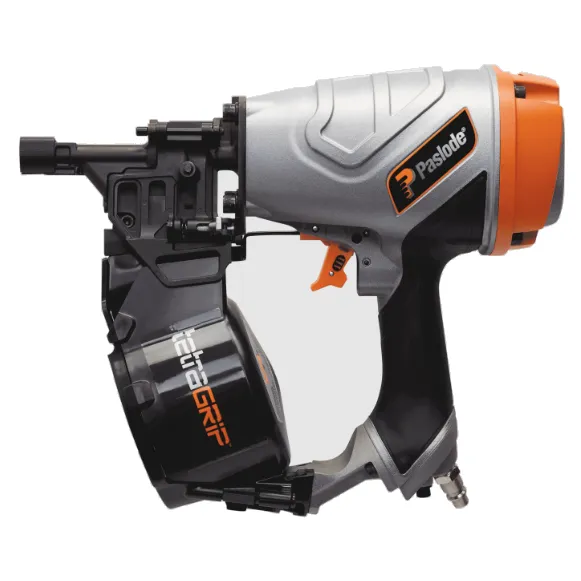

A breakthrough in subflooring installation, the tetraGRIP PF237C Coil Nailer eliminates subfloor squeaks and the potential for warranty callbacks. Created by Paslode, the pneumatic nailer drives specially designed 2-3/8″ tetraGRIP fasteners. The nails have a barbed, tetra-helical shank that rotates into wood, for “rotation without destruction.” The fastener creates a chemical bond with wood, resulting in superior withdrawal resistance. For greater customer satisfaction, fewer callbacks, and quieter floors, this is the subflooring nail gun to use.
This innovative subflooring nail gun has a compact design for navigating tight spaces and a cushioned grip for all-day comfort. The PF237C (#503000) drives approximately three times faster than traditional screws. The dual-mode trigger offers bump and sequential firing, and the nailer features tool-free drive depth adjustment. Thanks to the holding power of the subfloor fasteners, this nail gun dispenses with the gluing process, turning three installation steps into one.
WARNING: Failure to adhere to manufacturer specified installation guidelines will result in voiding of product warranty.
Resources
Box Count 1
SKU 503000
UPC 7595011134354
Power Type Pneumatic
Collation Type Plastic Strip
Application Type Subfloor
Brand Paslode
Maximum Fastener Length 2-3/8″
Condition New
Fastener Compatibility tetraGrip™ Subfloor Fastener
Case/Bag Included No
Included In Box Safety Glasses
Manufacturer’s Warranty One-Year Full Warranty, Five-Year Extended Limited
Item Width 5″
Special Features Metal Exhaust
Firing Speed Up to 4 nails per second
Item Height 13-1/2″
Item Length 12-1/4″
Magazine Capacity 120 Nails
Item Weight 8.26 lbs.
Usage Type Interior, Exterior
Minimum Fastener Length 2-3/8″
Operating Pressure 90-120 PSI
Firing Type Selective
Air Inlet Size 3/8″ NPT
Air Consumption.086/cycle
Model PF237C
Product Type Nailer
Depth Control Yes
Power Source Air
Special Offer No
Diameter Range.113″
Product Degree/Angle 0 Degree
Magazine Type Coil
Fastener Type tetraGRIP
