The laser welded 3X3 cuts concrete, reinforced concrete, asphalt and abrasive building materials and more. High quality diamond increases the speed of cut on a variety of materials without changing blades. Premium blade characteristics and price point where it would take multiple sintered blades to achieve.

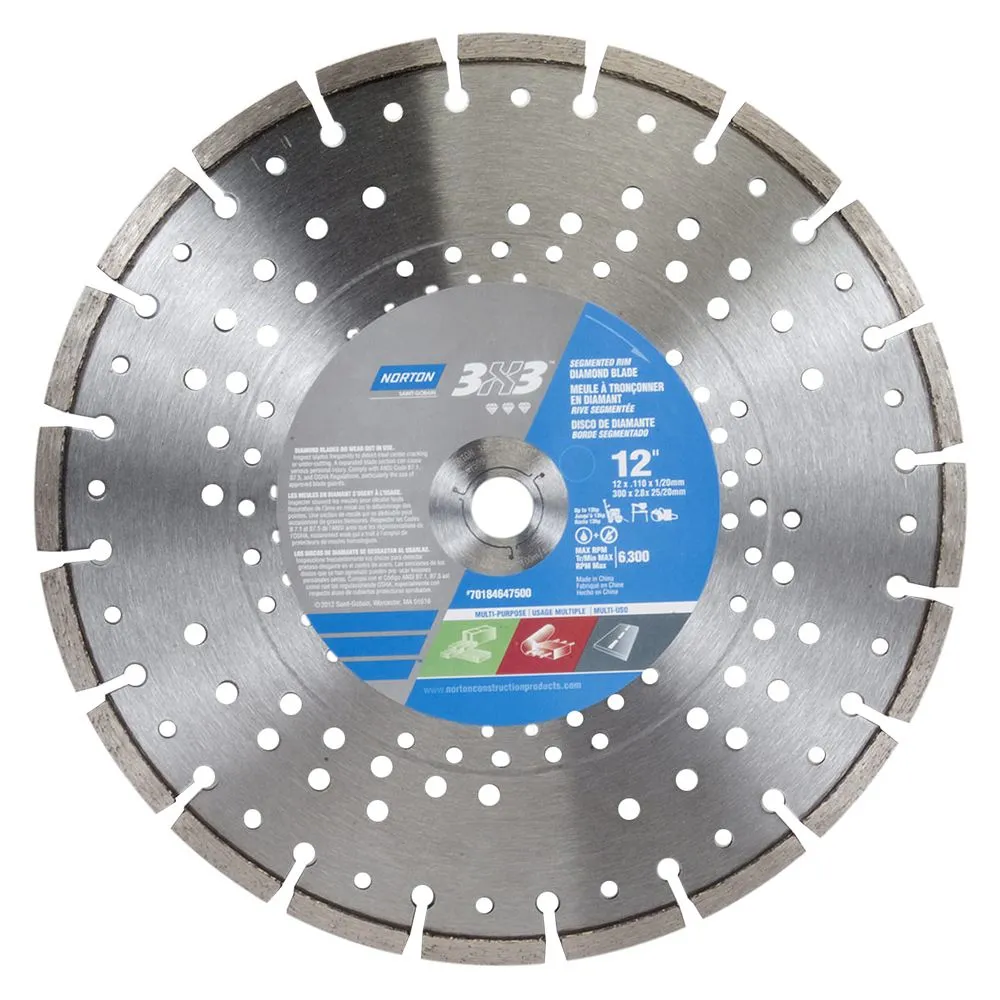

Norton 3×3 Multi-Purpose Concrete Diamond Blade Features:
Anti-Crack Gullet – The patented ellipsoidal gullets increase safety while significantly decreasing the risk of core cracking under the harshest conditions.
Wear Indicator – A new segment design has a built-in blade life gauge to signify 1/3 or 2/3 usage so operator can plan blade change needs.
Patented Depth Indicators – The stroboscopic depth indicators cut into the steel core helps control the depth of each cut, providing a non-wearing directional arrow, which also keeps the blade cool.
The Norton 3×3 Multi-Purpose Concrete Diamond Blade Specifications:
SKU
NORTON 3X3
Non-Returnable
No
Manufacturer
Norton
Blade Type
Segmented Rim
Arbor Size
1″, 20mm
Ceramic Tile Performance
Good
Porcelain Tile Performance
Good
Glass Tile Performance
Fair
Marble Performance
Fair
Thickness
.118″
Wet or Dry
Wet or Dry
Segment Height (in)
.314″
Dimensions (L x W x H)
12″ x 12″ x.118″ – 14″ x 14″ x.118″
Weight (lbs.)
2.16 – 4.00
