Standard Equipment:

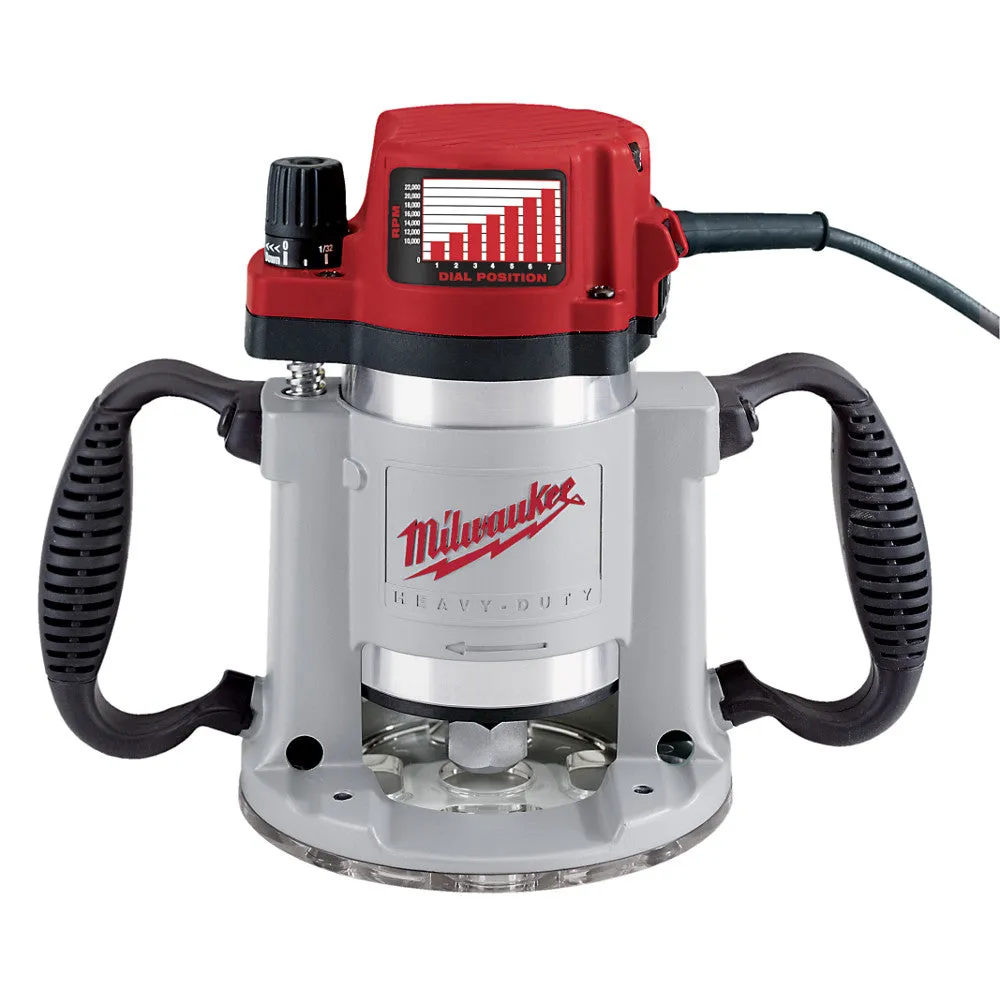

5625-20 Production Router
2-1/2″ Center Hole Sub Base
1/2″ Collet
2 Collet Wrenches
Specifications:
Ratings: 120V AC
Amperage: 15
Horsepower: 3-1/2
No-load RPM: 10,000 – 22,000
Collet Capacity: 1/4″, 1/2″
Base Diameter: 6″
Weight: 8.5 lbs
Features:
Powerful 15 Amp Milwaukee-built motor with electronic variable speed (10,000-22,000 RPM), premium feedback circuitry and soft-start.
36-position speed dial allows the user to precisely match the tool rpm to the bit diameter while the premium electronic feedback circuitry maintains speed and power under load.
Exclusive linear height adjustment system with above-the-table access, providing fast, precise coarse adjustments to within 1/8″ and micro-fine adjustments to within 1/64″.
3/8″ hex extension wrench for above-the-table depth adjustments in router table applications.
For added protection when table-mounted, the router features an exclusive motor contamination shield that keeps damaging debris out without sacrificing airflow.
For maximum operator control and comfort, the 5625-20 router has impact-resistant, tactile-grip handles set wide apart and angled forward.
Durable, machined aluminum motor housing and base along with premium self-releasing collets.
100% sealed ball bearings.
