1/2HP, 1Ph 115V

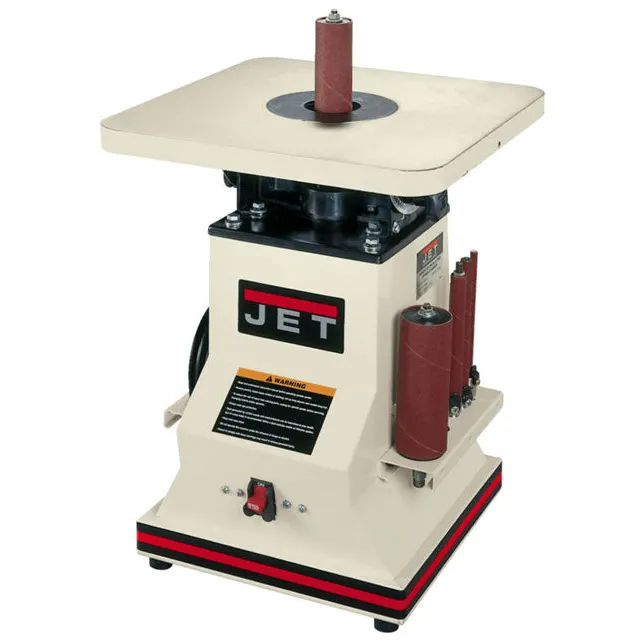

The JBOS-5 Benchtop Spindle Sander has a 1/2HP motor, and a large 14-1/2” tilting table. A heavy-duty worm gear system provides one-inch oscillating action, which prolongs sleeve life and helps prevent burnishing of the workpiece. Four inserts are provided, and 5 spindles with sanding sleeves.
Standard Equipment:
JBOS-5 Oscillating Spindle Sander
Specifications:
Oscillations Per Minute: 30 OPM
Oscillation Stroke: 1″
Spindle Speed: 1,725 ROM
Table Size (L x W): 14-1/2″ x 14-1/2″
Table Tilt: 0 – 45 Degrees
Motor Power: 1/2 HP
Motor Phase: 1
Features:
1″ oscillating action reduces friction heat to protect wood and prolong sleeve life.
Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance.
Oscillation gears run in a sealed lubricated box to prolong their life and durability.
Table tilts to 45 degree to accommodate bevel sanding projects.
Removable on/off safety switch prevents accidental start-up.
Powerful 1/2HP induction motor easily handles the toughest sanding projects.
Built-in 2″ dust port keeps dust and debris out of the air.
Spindles have threaded ends for quick, easy changes.
Four table inserts are provided (3/4″ and 1″ Oblong, 3/4″ and 1″ Round), to prevent dust and debris from falling into the motor, and help protect operator..
Built-in storage racks keep spindles and table inserts handy.
Includes four non-skid rubber feet keep machine stable during use.
Includes 1/4″, 1/2″, 5/8″, 1-1/2″, 2″ spindle assemblies with 100 grit paper.
