for Systainer3 M, T-LOC and Classic
Custom build a storage solution that fits your needs. With individual drawer and slide mechanisms, featuring full-slide capability, each Systainer lid can be fully opened. Designed to work with 32 mm systems for layout and construction. Compatible with Classic or T-LOC SystainerS. Maximum load 44 lbs. SystainerS sold separately, includes five (5) drawers.
Box construction should be 16-13/16″ (427mm) wide by 14-31/32″ (380 mm) or more deep, with a minimum of 1/2″ (13mm) under the bottom drawer and 5/16″ (8mm) above the top drawer. See manual for more information.
Standard Equipment:

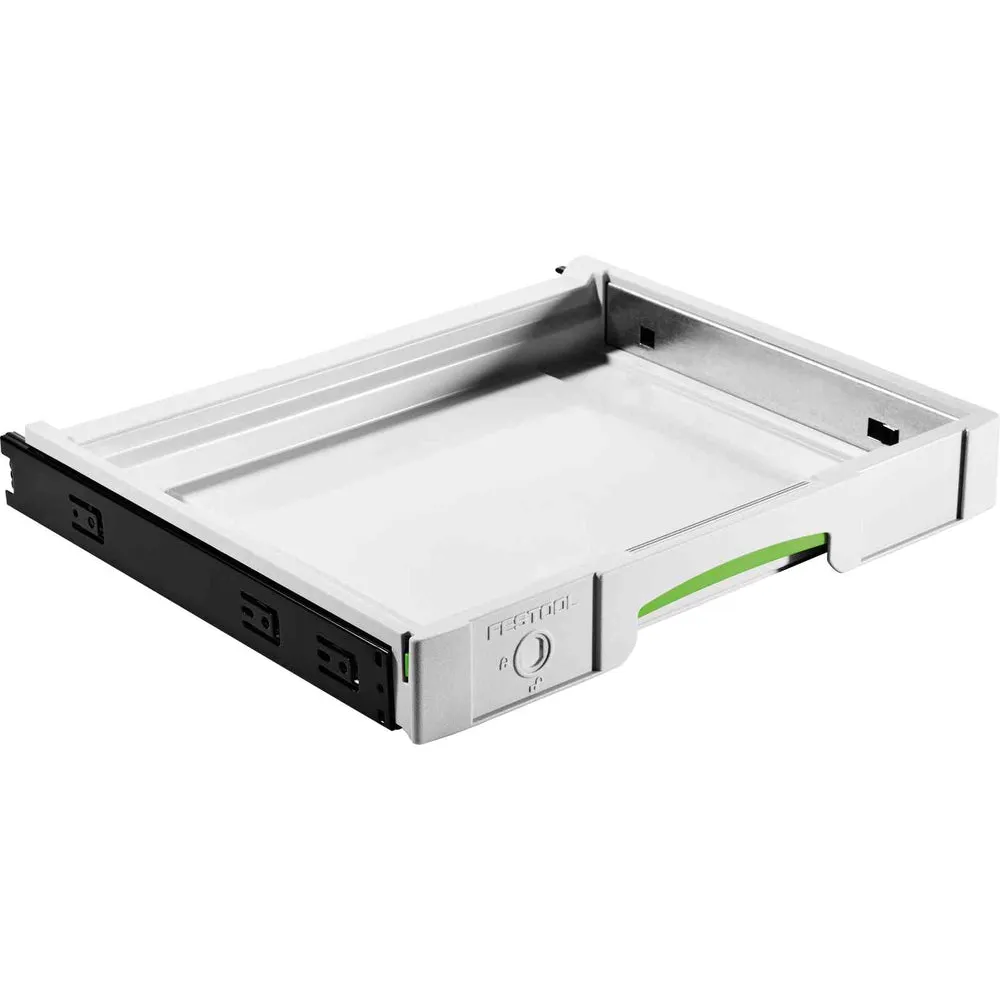

(1) 500692 SYS-AZ Pull-out Drawer
Specifications:
Max Load: 44.09 lbs (20 kg)
Dimensions (L x W x H): 17″ (425 mm) x 15″ (376 mm) x 2-1/4″ (57 mm)
Features:
Use for Do-It-Yourself Sysport construction to hold Festool SystainerS
Slides fully extend allowing you to open SystainerS while in the drawer
Compatible with Classic and T-LOC SystainerS
Optional drawer lock available
For constructing an individual shelf system
In 32 hole grid
