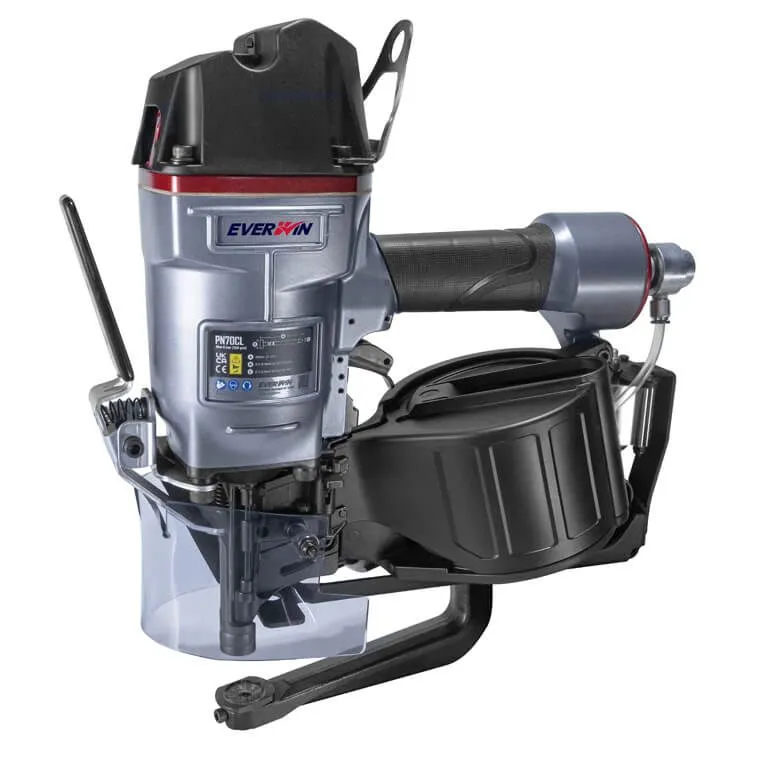

The PN70CLB Pallet Clinch Nailer, 2-1/4″ is a patented pneumatic tool that revolutionizes the way string pallets are repaired. This clinch nailer has a 2.3″ clinch opening, and is designed to drive 15° Wire Coil Clinch Nails 2-1/4″ x 0.113″ . This tool is engineered to improve operation safety while boosting efficiency for pallet repair clinch nailing applications. The PN70CLB is an industrial tool with a built-in anvil that nails are driven against, which results in nails clinched as intended in pallet repair.
EVERWIN’s patented ClinchArm air route ensures the anvil clamps pallet strings firmly before each nail is driven, resulting in an optimal clinch-yield rate. Once the trigger is pulled, the following sequence of motions happen:
1) The PN70CLB’s clinch arm is brought upwards by a rear cylinder.
2) The first sequence clamps pallet strings against each other.
3) A nail is driven and clinched against the anvil attached to the clinch arm.
The PN70CLB is lightweight and tough, making it ideal for professional contractors. It features a cap shield to cover airlines and minimize maintenance, a hanger bracket to minimize fatigue, and dust cover to block nails or wire chips. Buy your PN70CLB Clinch Nailer today at Nail Gun Depot!
NOTE: PN70CLB Model is ideal for 1.8″ total board thickness.
Resources
Box Count 1
SKU PN70CLB
Power Type Pneumatic
Collation Type Wire
Application Type Pallet Assembly
Brand Everwin
Maximum Fastener Length 2-1/4″
Condition New
Fastener Compatibility 15° Wire Coil Nails
Fastener Shank Diameter 0.113″
Case/Bag Included No
Fastener Head Diameter 0.224″-0.283″
Fastener Shank Type Smooth, Screw or Ring
Manufacturer’s Warranty One-Year Limited
Item Width 6.1″
Special Features Dust Cover, Backup Anvil, Patented Clinch Sequence Design
Item Height 16.5″
Item Length 14.8″
Magazine Capacity 225-300
Item Weight 17.4 lbs.
Usage Type Interior
Minimum Fastener Length 2-1/4″
Housing Material Metal, Steel
Operating Pressure 70 to 120 psi
Firing Type Contact
Air Inlet Size 1/4”-18 NPT (fitting not included)
Air Consumption 3.6 cfm
Product Type Nailer
Depth Control No
Power Source Air
Special Offer No
Product Degree/Angle 15 Degree
Magazine Type Coil
Fastener Type Clinch Nails
