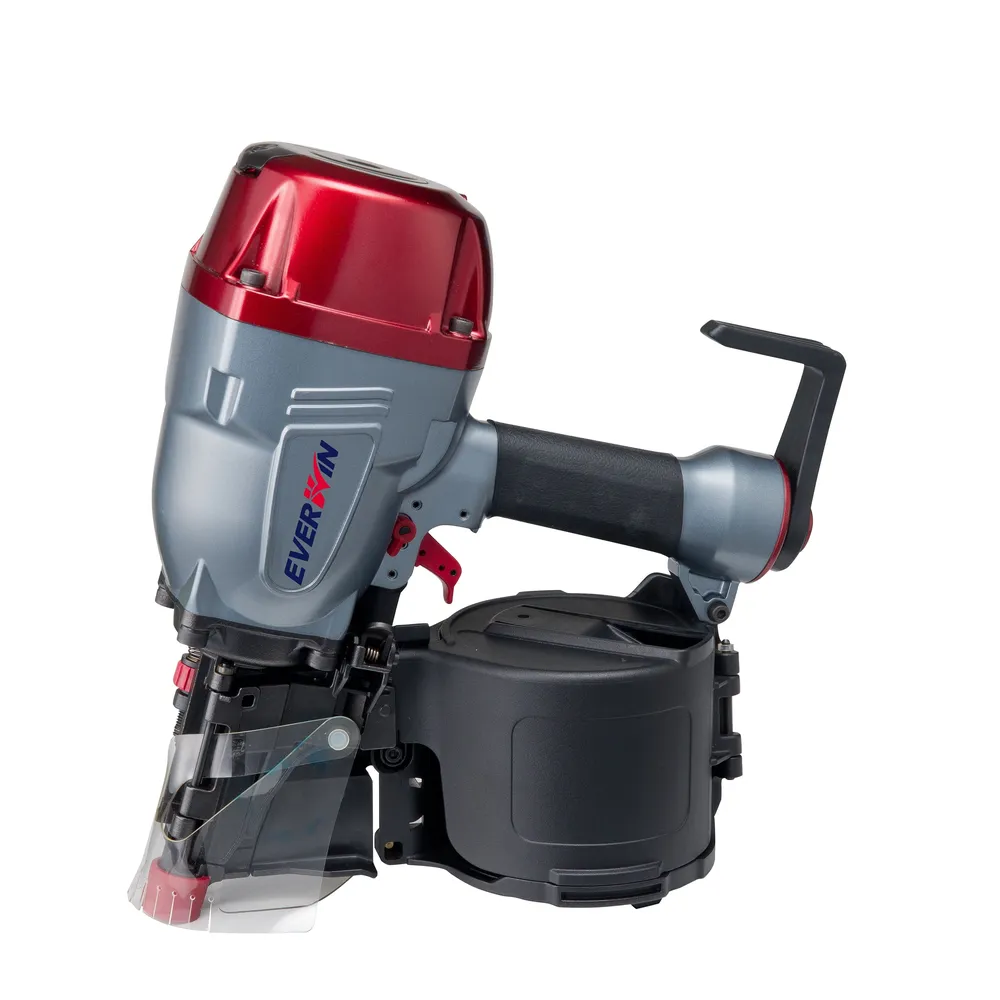

It may be small, but the Everwin FCN90B Framing Coil Nailer is certainly mighty. Considered the “world’s most compact framing nailer,” it stands just over 13” and weighs 7.7 lbs, so it’s designed for mobility. While it’s nimble enough to fit between standard C-C studs, don’t be deceived–the FCN90B delivers a 1,000 In-lb. driving force that means business, even in tough working environments. You’ll find it versatile enough for framing, sheathing, decking, subfloors, siding furring, general construction, and crate and box assembly.
The FCN90B nailer uses 15-degree wire collated nails. Other features include a cushioned rubber grip, ergonomic frame to prevent fatigue, multi-directional exhaust cover, tool-free adjustable depth, rotatable rafter hook, optional rubber pad to protect surfaces, durable nose and body, easy-load magazine, and anti-abrasive driver to help extend tool life. Includes one-year manufacturer’s warranty. This product comes packaged with one 3/8″ fitting. Purchase the FCN90B today from Nail Gun Depot!
The Everwin FCN90B is also compatible with select Aerosmith VersaPin (Tool Group S) and Aerosmith VersaPin (Tool Group SB) fasteners for applications that include OSB, Plywood, and Cement Siding to Cold Formed Light Gauge Steel.
Formerly sold as the FCN90, the new model features a contact trigger.
Box Count 1
SKU FCN90B
UPC 191399000839
Power Type Pneumatic
Collation Type Wire Weld
Application Type Framing, Sheathing, Subfloor, Crating, Decking, Siding
Brand Everwin
Maximum Fastener Length 3-1/2″
Condition New
Case/Bag Included No
Manufacturer’s Warranty One-Year Limited
Item Width 5-1/2″
Item Height 13-1/5″
Item Length 11–9/10″
Magazine Capacity 150-300
Country of Manufacture Taiwan
Item Weight 7.7 lbs.
Usage Type Exterior
Minimum Fastener Length 2″
Housing Material Aluminum
Operating Pressure 70 to 100 PSI
Firing Type Contact
Air Inlet Size 3/8″ NPT (fitting included)
Air Consumption 4.2 SCFM
Product Type Nailer
Depth Control Yes
Power Source Air
Special Offer No
Diameter Range.099″ to.148″
Product Degree/Angle 15 Degree
Magazine Type Coil
Fastener Type Framing Nail
