Standard Equipment:

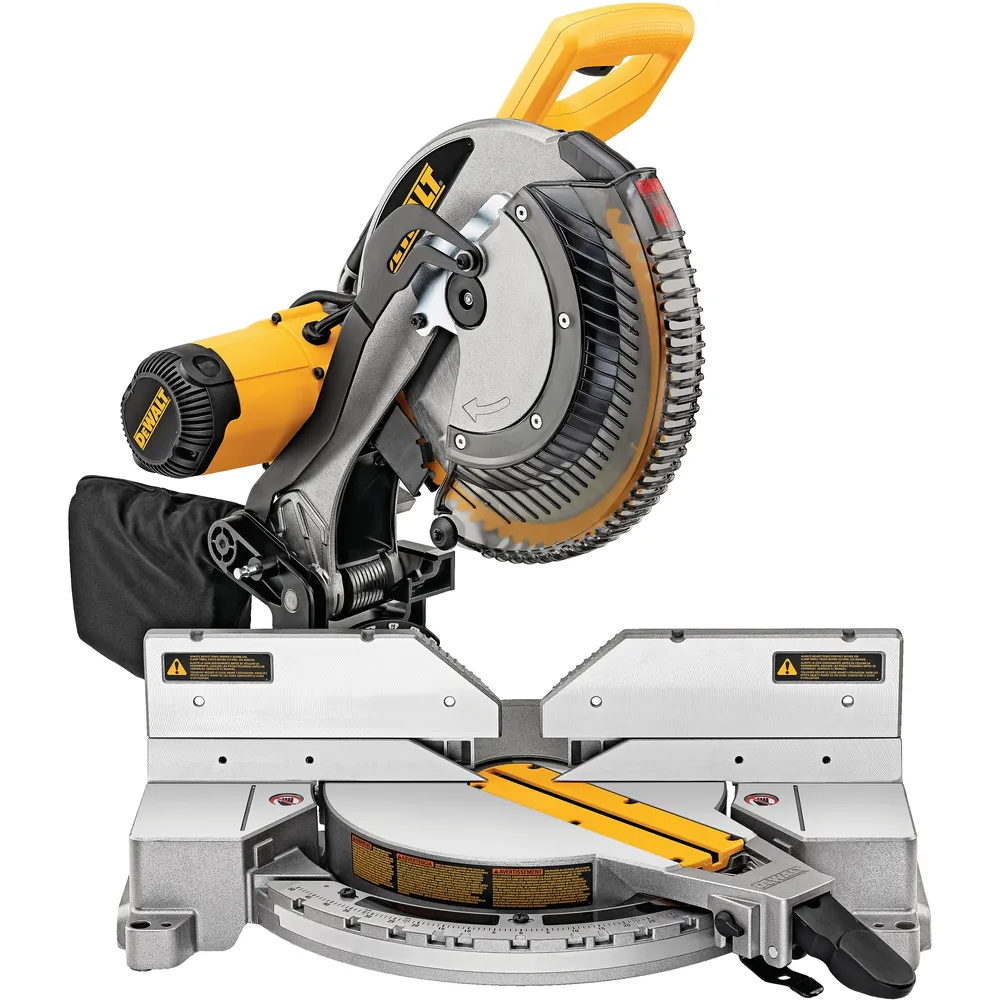

DWS716 Miter Saw
12″ Carbide Tipped Blade
Dust Bag
Blade Wrench
Vertical Clamp
Optional Accessories:
Miter Saw Blades
Specifications:
Rating: 120V AC
Amperage: 15.0
No-load RPM: 3,800
Blade Diameter: 12″
Round Arbor Diameter: 5/8″ or 1″
Bevel: Dual
Tool Height: 16.5″
Tool Width: 22.5″
Weight: 41.0 lbs
Features:
The 12 in. Double-Bevel Compound Miter Saw is powered by a 15 Amp motor that drives 3,800 rpm to deliver extended power and durability. This saw features a stainless-steel miter detent plate with 14 positive stops and cam miter lock system that provides repeatable accuracy and durability with easy adjustments. Tall sliding fences support 6-1/2 in. of base molding vertically and 6-5/8 in. of crown molding vertically nested. High-efficiency dust duct is concentrated at the point of cut for maximum collection. The lightweight design and built-in carry handle provide portability.
Stainless steel miter detent plate with 14 positive stops delivers repeatable accuracy and worksite durability
Double-bevel design allows saw to bevel 0° – 48° to the left and right with positive stops at 0°, 22.5°, 33.9°, and 45°
Cam lock miter handle with detent override delivers quick and accurate miter angles
Tall sliding fences support crown molding up to 6-5/8 in. nested and base molding up to 6-1/2 in. vertically against fence
0° – 50° left and right miter capacity
