For the DCH273P2 1″ SDS Plus 20V Rotary Hammer

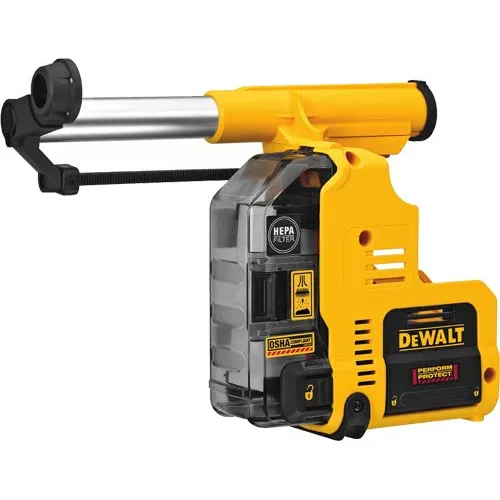

This OSHA Table 1-compliant Dust Extractor works with the DCH273 1″ Hammer. It features an OSHA 1926.1153-compliant Dust Box Assembly. With a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater. The Dust Extractor has a powerful built in motor for increased suction during high performance drilling. The 2-second power-off delay ensures that dust extraction continues after the drill is switched off. It accomodates drill bit diameters up to 5/8″ which allows users to drill overhead for 1/2″ drop-ins.
Standard Equipment:
DWH303DH Dust Extractor
DWH302DH Dust Box
Side Handle
Specifications:
Carbide Drill Bit Capacity: 5/8″ X 4″ Useable X 6″ Overall
Compatible With: DCH273B, DCH273P2
Filter Cleaning Mechanism: True
For Tool Type: SDS Plus Rotary Hammers
Hepa Filter (99.97% Efficiency): True
OSHA Compliance Table 1
Tool Height: 10.2″
Tool Length 13.6″
Tool Width: 5″
Tool Weight 3.08 lbs
Features:
Table 1-compliant dust management solution for the DCH273P2 1″ SDS Plus 20V Rotary Hammer.
Replaceable HEPA filter (DWH302DH) removes 99.97% of airborne particles 0.3 microns or greater.
2-second power off delay ensures dust extraction to continue after drill is switched off.
Clear, durable dust box ensures users can see when dust box needs to be emptied.
Built-in motor increases suction and high tool performance.
Replaceable dust nozzle to quickly change to new nozzle.
Drill up to 5/8″ diameter, 4″ useable length, 6 in. overall length bits.
Fits into tight spaces on scissor lifts and between overhead pipes and duct work.
Easily adjustable depth guage for accurate anchor drilling.
