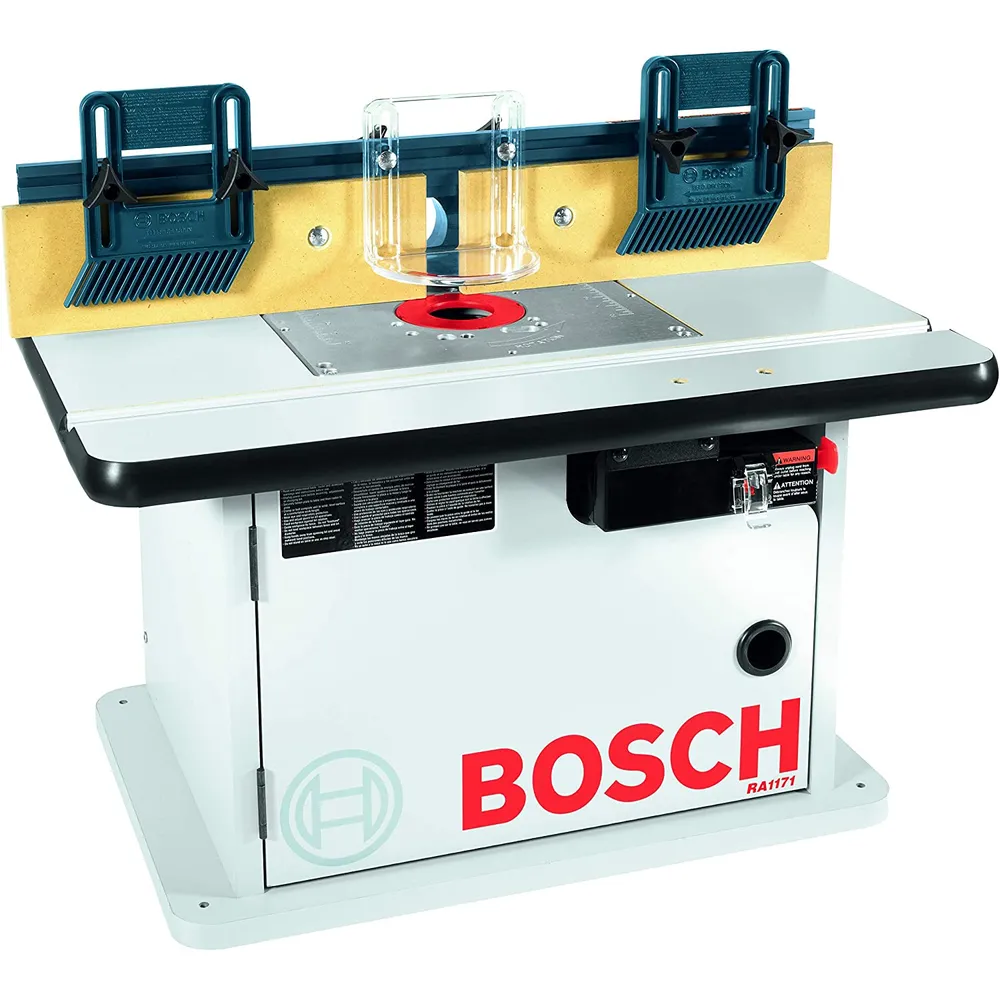

The Bosch RA1171 is pre-drilled for use with the following routers:Bosch 1617 series*, 1613 series, VAC004; Porter Cable 690, 892-895 series*, 7529; Milwaukee: 5615, 5616; Hitachi: M12VC; DeWalt: DW616, DW618*; Makita: RF1100, RF1101.The 10-24 3/4″ screws provided in the kit to mount the 890 series of routers are too long. You will need to buy 10-24 1/2″ screws to mount the base properly.*NOTE: FIXED BASE MODELS ONLY
Standard Equipment:
RA1171 Router Table
Set of 3 Mounting Plate Insert Rings
Hardware for Mounting Most Bosch Routers
2 Adjustable Featherboards
Adjustable Clear Guard
Starter Pin and Guard
Outfeed Fence Shims
Specifications:
Table Size HxDxW: 14-3/4″ x 15-7/8″ x 25-1/2″
Max Fence Opening: 3-3/4″
Max Throat Opening: 3-5/8″
Cord Length: 6′
Weight: 42.0 lbs
Features:
Tall aluminum fence with adjustable MDF face plates 4-7/8″ x 25-1/8″ supports taller work pieces and outfeed can be offset for jointing.
Rigid aluminum router mounting plate stays flat and precise for accuracy and pre-drilled for a variety of routers.
Easy-to-use adjustable featherboards to attach to fence and table, providing additional guidance and kickback protection.
Accessory slot accepts featherboard and 3/4″ optional accessories such as miter gauge.
Starter pin and guard for curved work pieces.
2 dust collection ports for standard 2-1/2″ vacuum hoses.
