Top Handle Kit

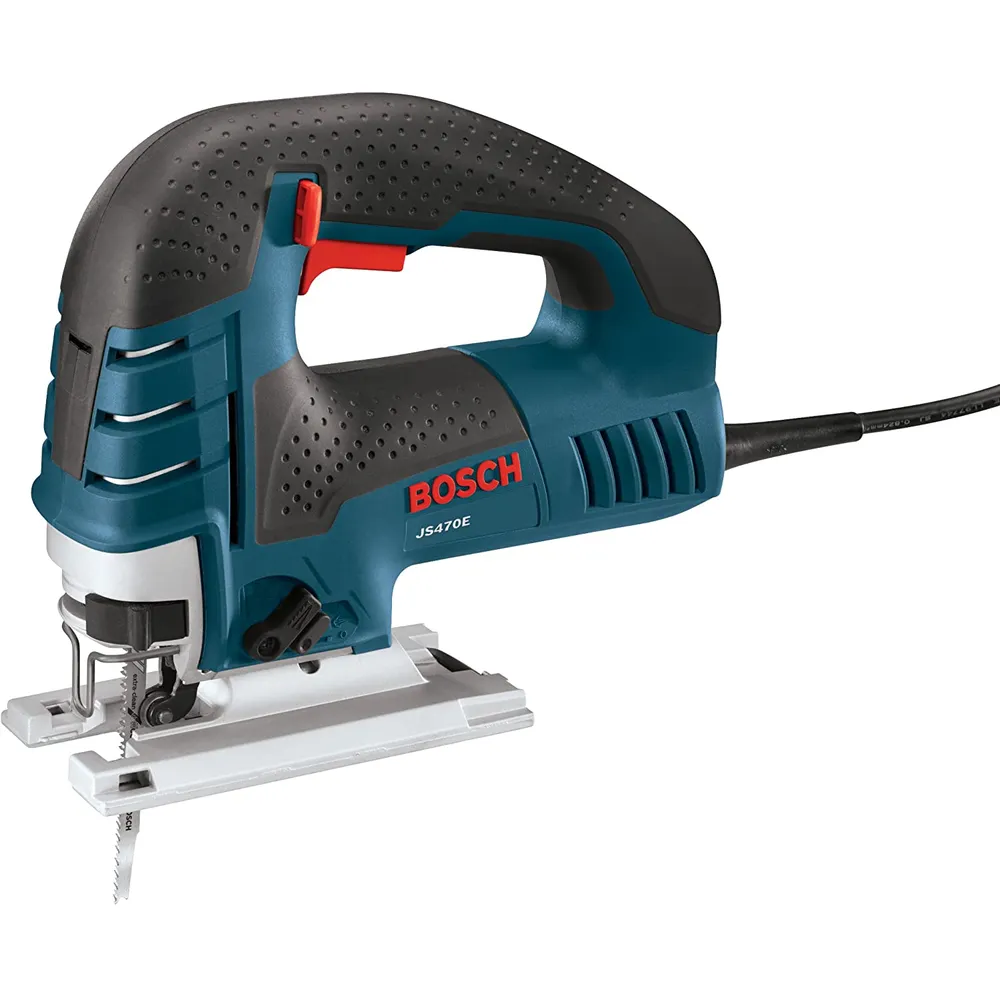

The JS470E top-handle jigsaw delivers 7.0 amps of power – the highest jig saw power rating on the market. Constant Response circuitry maintains the desired speed for consistent performance, and a precision-machined plunging system and low-vibration design contribute to the cutting accuracy and smooth operation.
Standard Equipment:
JS470E Jigsaw
1 Jig Saw Blade
Anti-Splinter Insert
No-marring Overshoe
Carrying Case
Optional Accessories:
Jigsaw Blades
Specifications:
Rating: 120V AC
Amperage: 7.0
Stroke Length: 1″
No-load SPM: 500 to 2,800
Cutting Capacities…Soft Wood: 5-7/8″Mild Steel: 3/8″Aluminum: 7/8″
Max Bevel Cut: 45 Degrees
Weight: 5.9 lbs
Length: 10″
Features:
Aluminum gearbox with insulated cover.
Toolless Blade-Change System – Fast insertion, blade ejection lever eliminates need to touch hot blade. Most secure jigsaw clamping system.
Ambidextrous lock-on button – For steady long cuts and user comfort and control.
Variable speed – Dial sets maximum speed and accelerator trigger controls operating speed.
Large, sturdy die-cast foot with steel insert and on-board bevel wrench.
Powerful 7.0 Amp Jigsaw – Top jigsaw amp rating.
Exclusive multi-directional blade clamp provides superior grip of T-shank blades.
Internal Precision Control – Precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation.
Constant Response circuitry – Maintains desired speed for consistent performance and precision.
Four orbital-action settings -Different blade strokes for smooth to aggressive cuts.
Adjustable dust blower keeps cutting line clear.
Ergonomic top handle with soft-grip areas for solid, comfortable grip.
