Door Making Router Bits: Two Piece Stile & Rail Router Bits, Carbide Tipped: 1-5/8″ Dia x 1-1/16″ x 1/4″ Shank
These sets include two trim cutters for stock 7/8″ through 1″ in thickness. (These trim cutters can be removed for making bearing-guided cuts on stock under 7/8″ thick.)
Use in a table-mounted router. Guide straight cuts with the fence, setting it tangent to the trim cutters. Use the pilot bearing only for cuts on curved rails or stiles; for cuts on curved parts 7/8″ to 1″ thick, a template must to used.
Standard Equipment:

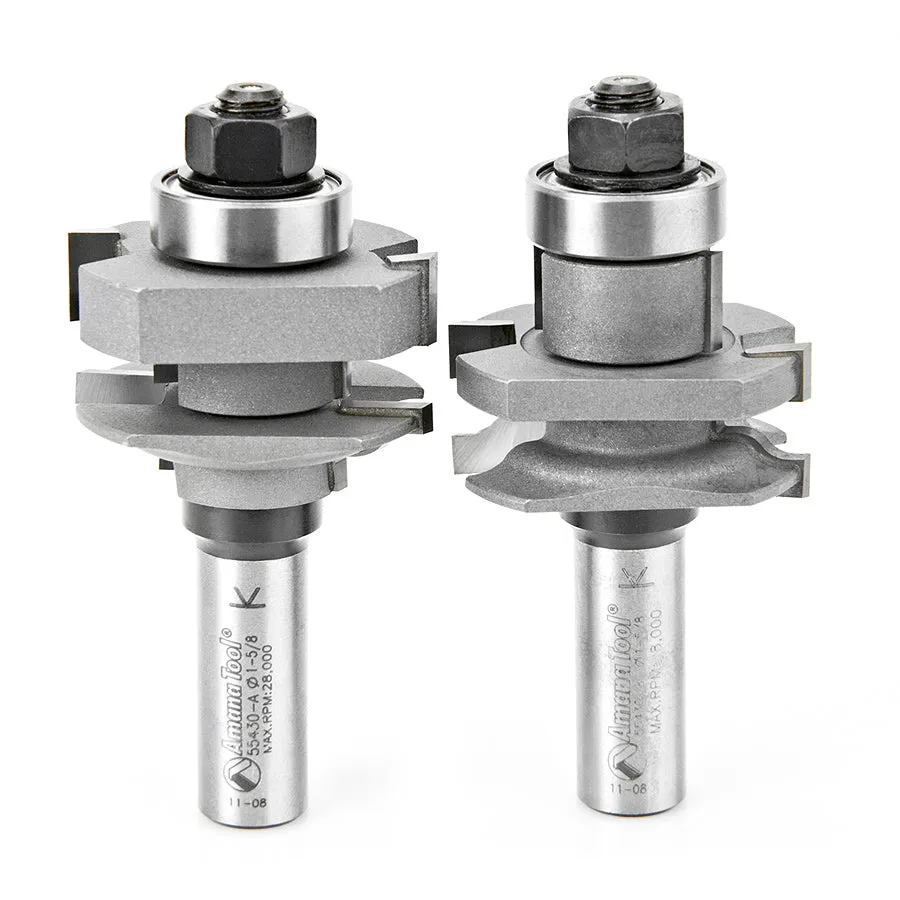

55430 Two Piece Ogee Stile & Rail Router Bit
Specifications:
Diameter (D): 1-5/8″
Radius (R): 1/4″
Cutting Height (B): 1-1/16″
Shank (d): 1/2″
C: 3/8″
Overall Length (L): 3-5/16″
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
