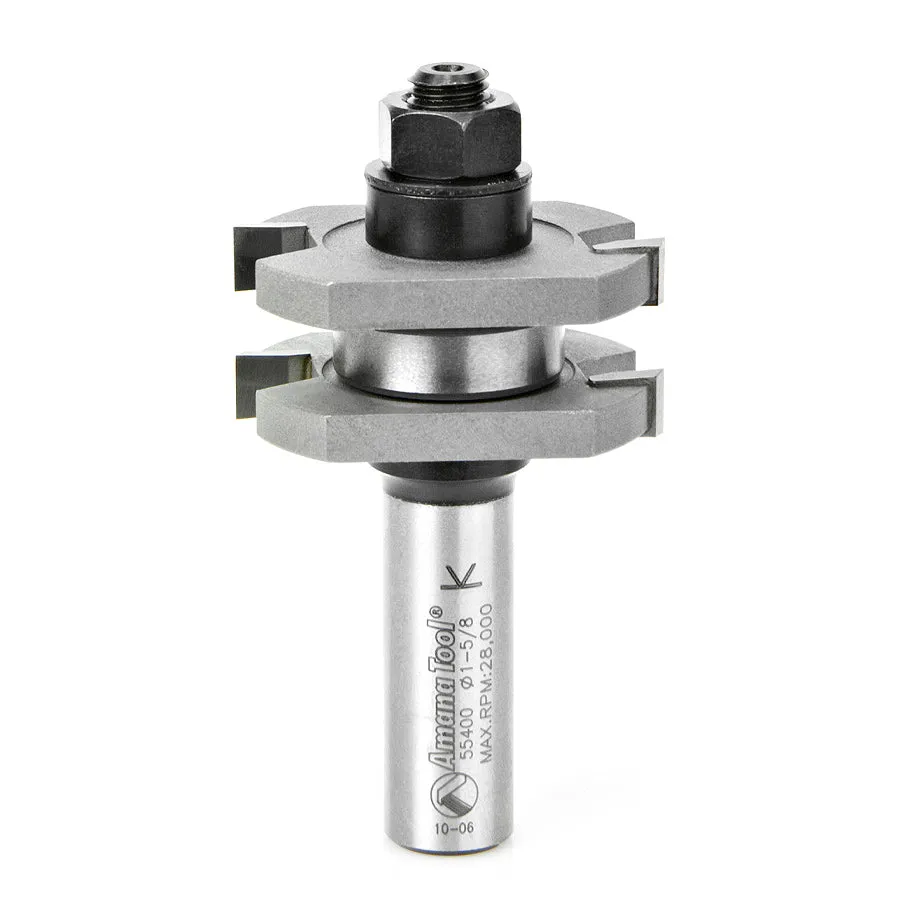

Jointing Router Bits: Tongue & Groove Router Bits, Carbide Tipped: 3/8″ Kerf x 1-5/8″ Dia x 3/4″ x 1/2″ Shank
Cut perfectly fitted tongue-and-groove joints on stock between 1/2″ and 3/4″ thick with a table-mounted router and this assembly. The tool consists of an arbor with an integral shank, two identical, removable slotting cutters, and a pair of bearings.
Standard Equipment:
55400 Tongue & Groove
Specifications:
Diameter (D): 1-5/8″
Cutting Height (B): 3/4″
Shank (d): 1/2″
Overall Length (L): 3″
B1: 1/4″
T: 1/4″
Material Size: 1/2″ – 3/4″ Thick
C: 3/8″
Wings: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
