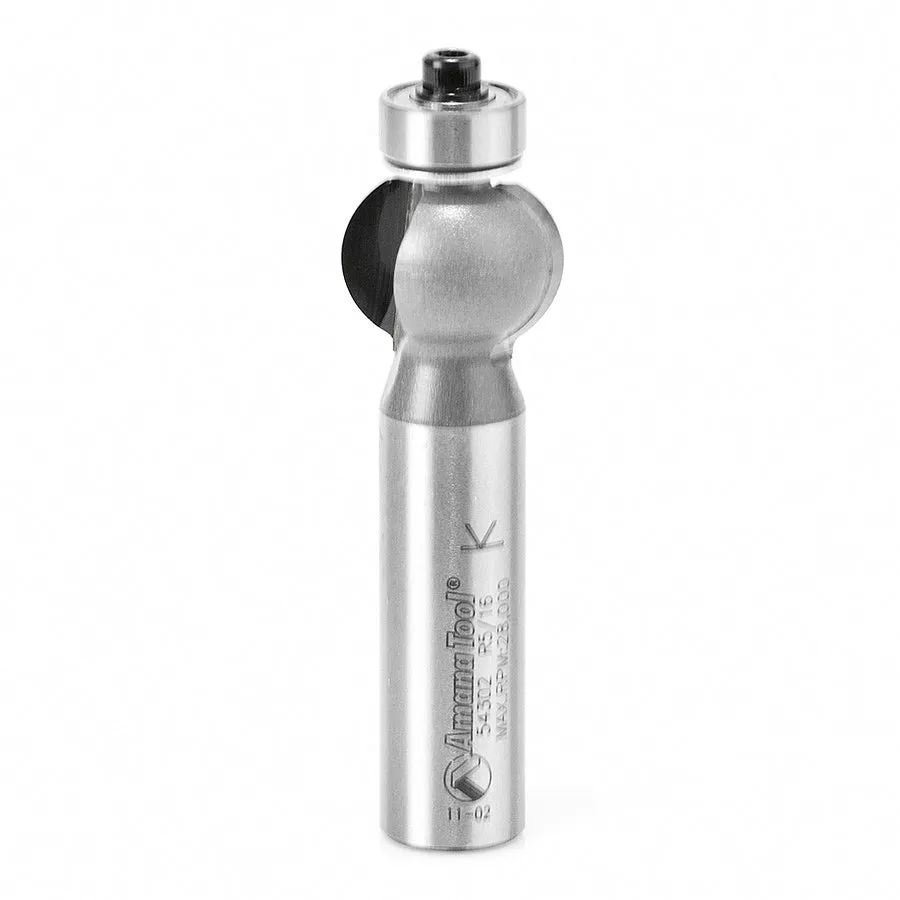

Profiling Router Bits: Edge Fluting Router Bits, Carbide Tipped: 5/16″ Rad x 3/4″ Dia x 1/2″ x 1/2″ Shank
This bit produces a fingernail flute, rather than a full 180° radius flute. Creates an interesting edge detail, and can be used to make small-scale cornice-type moldings. Use in a handheld or a table-mounted router.
Standard Equipment:
54302 Edge Fluting Router Bit
Specifications:
Diameter (D): 3/4″
Radius (R): 5/16″
Cutting Height (B): 1/2″
Shank (d): 1/2″
C: 1/8″
Overall Length (L): 2-3/4″
Flutes: 2
Replacement Bearing: 47706
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
