Profiling Router Bits: Handrail Router Bits, Carbide Tipped: 1/8″ x 1/2″ Rad x 1-1/4″ Dia x 1-1/2″ x 1/2″ Shank
Shape the sides of a handrail to make it both attractive and easy to grip. (Then ease the top edges with table edge bits.) Use in a handheld or table-mounted router.
Standard Equipment:

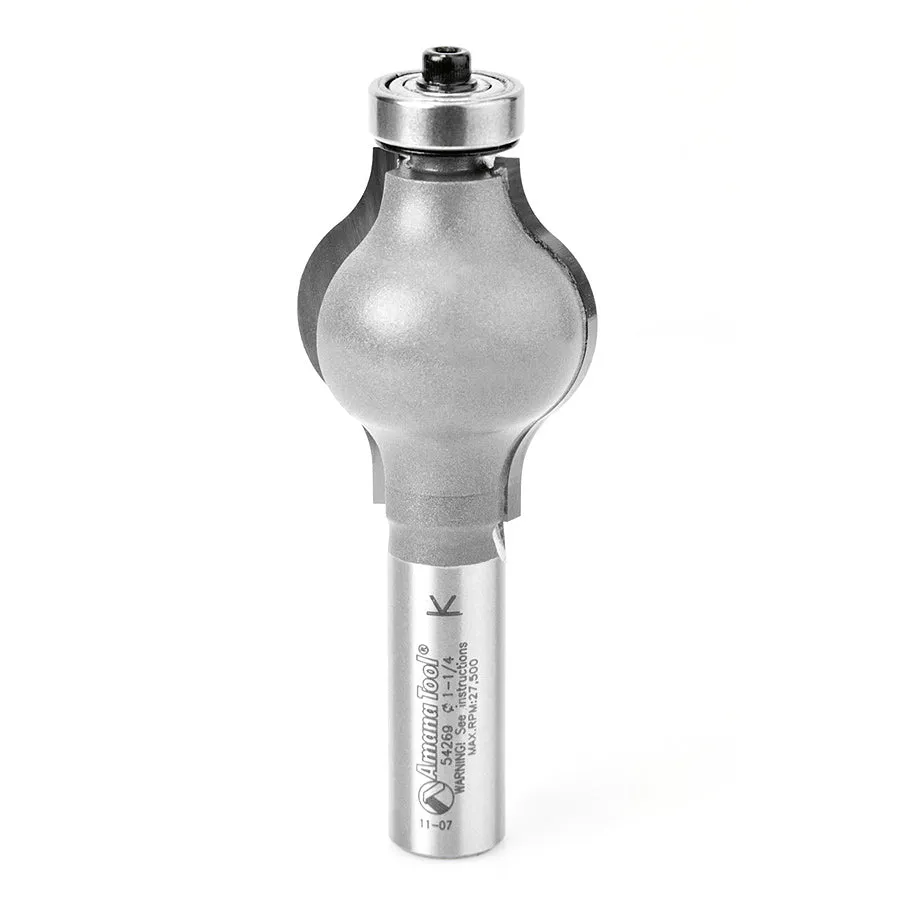

54269 Handrail Router Bit
Specifications:
Diameter (D): 1-1/4″
Radius (R): 3/8″
R1: 1/2″
Cutting Height (B): 1-3/8″
Shank (d): 1/2″
Overall Length (L): 3-3/8″
Flutes: 2
Replacement Bearing: 47716
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
