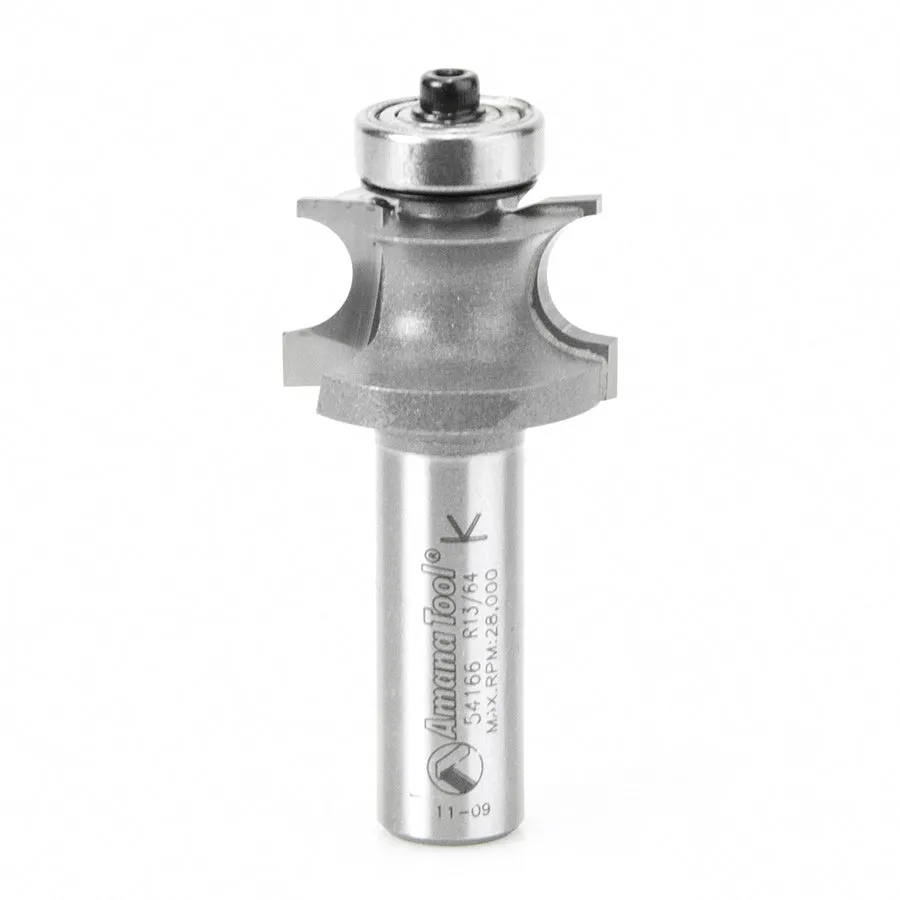

Profiling Router Bits: Corner Beading Router Bits, Carbide Tipped: 3/16″ Rad x 1-1/8″ Dia x 11/16″ x 1/2″ Shank
Produce three slightly different profiles using this bit – an edge bead with or without a fillet and a full corner bead – by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.
Standard Equipment:
54166 Corner Beading Router Bit
Specifications:
Radius (R): 3/16″
Diameter (D): 1-1/8″
Cutting Height (B): 11/16″
B1: 13/32″
D1: 1″
Shank (d): 1/2″
Overall Length (L): 2-5/8″
Flutes: 2
Replacement Bearing: 47716
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
