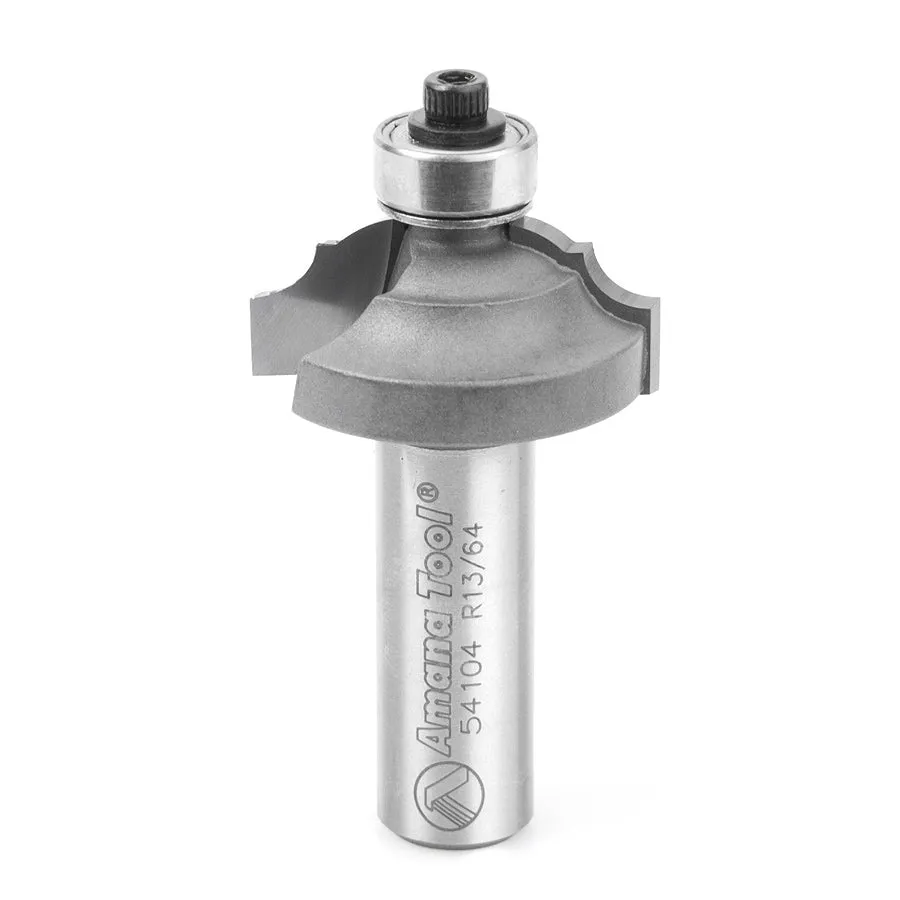

Profiling Router Bits: Classical Cove & Bead Router Bits, Carbide Tipped: 13/64″ x 5/16″ Rad x 1-1/4″ Dia x 1/2″ x 1/2″ Shank
This bead and cove combines the two basic forms, separating them with a fillet. The cove comes off the pilot bearing. Produce a complex profile in a single pass. Use in a handheld or table-mounted router.
Standard Equipment:
54104 Classical Cove & Bead Router Bit
Specifications:
Radius: 13/64″
Diameter (D): 1-1/4″
Cutting Height (B): 1/2″
R1: 5/16″
Shank (d): 1/2″
Overall Length (L): 2-3/8″
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
