Profiling Router Bits: Corner Round Router Bits, Carbide Tipped: 1″ Rad x 2-1/2″ Dia x 1-1/4″ x 1/2″ Shank
The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
Standard Equipment:

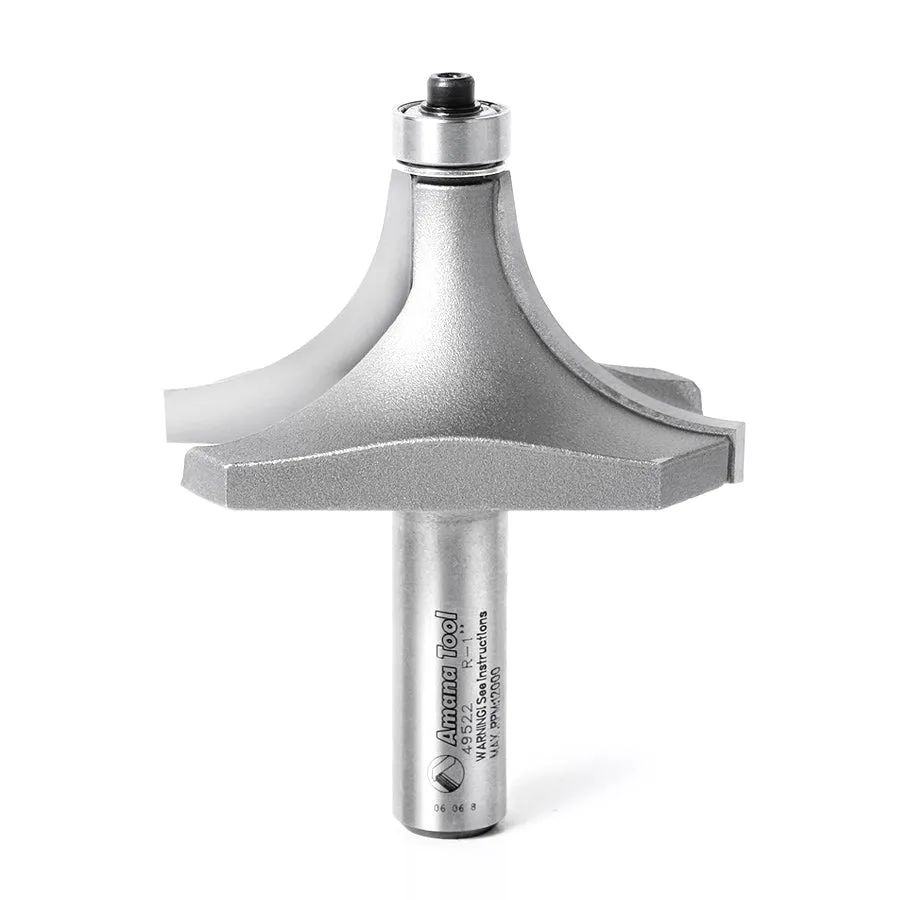

49522 Corner Round Router Bit
Specifications:
Radius (R): 1″
Diameter (D): 2-1/2″
Cutting Height (B): 1-1/4″
D1: 1/2″
Shank (d): 1/2″
Overall Length (L): 3-3/16″
Flutes: 2
Replacement Bearing: 47706
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
