Trimming Router Bits: Overhang Trim Router Bits, Carbide Tipped: 1/8″ Overhang x 3/8″ Dia x 1/2″ x 1/4″ Shank
Stage flush trimming cuts, whether in laminate work or template work, with this bit. Trimming the material in two passes reduces chipping in laminates and tearout in solid wood. A preliminary cut with the overhang bit leaves a small overhang in laminate or template work, leaves an edge slightly protruding the template.
Complete the operation with a final pass using a standard trim bit.
Standard Equipment:

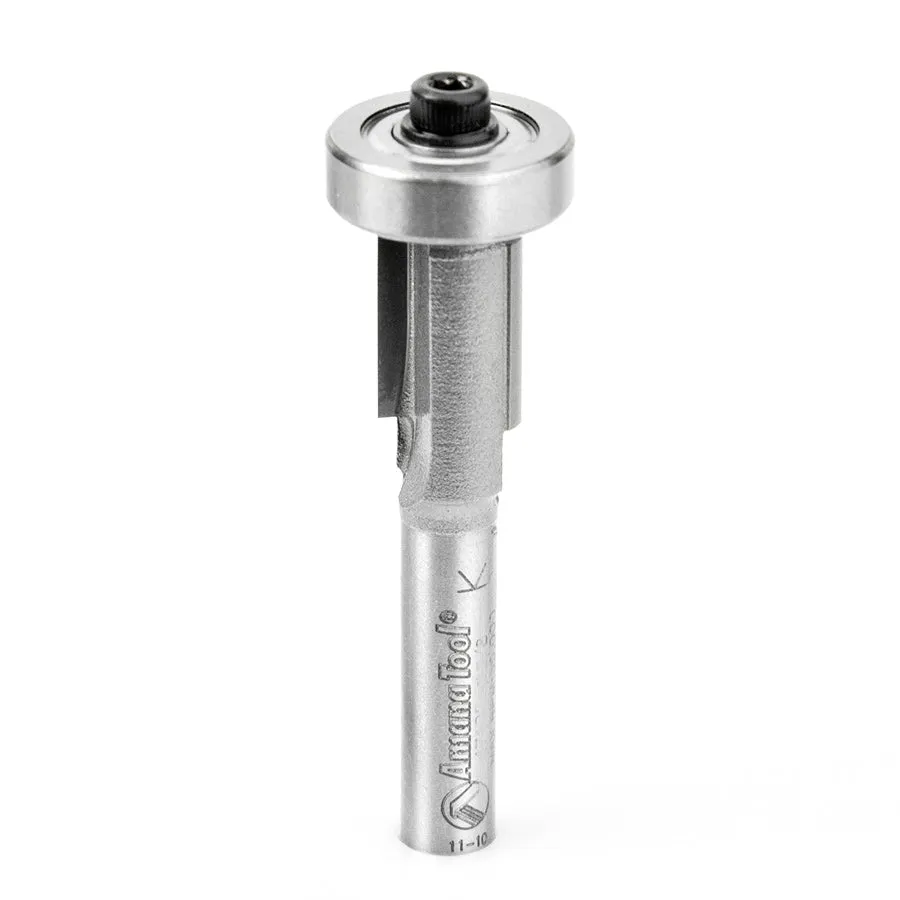

47190 Overhang Trim Router Bit
Specifications:
Diameter (D): 3/8″
Cutting Height (B): 1/2″
Shank (d): 1/4″
C: 1/8″
Overall Length (L): 2″
Flutes: 2
Replacement Bearing: 47718
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
