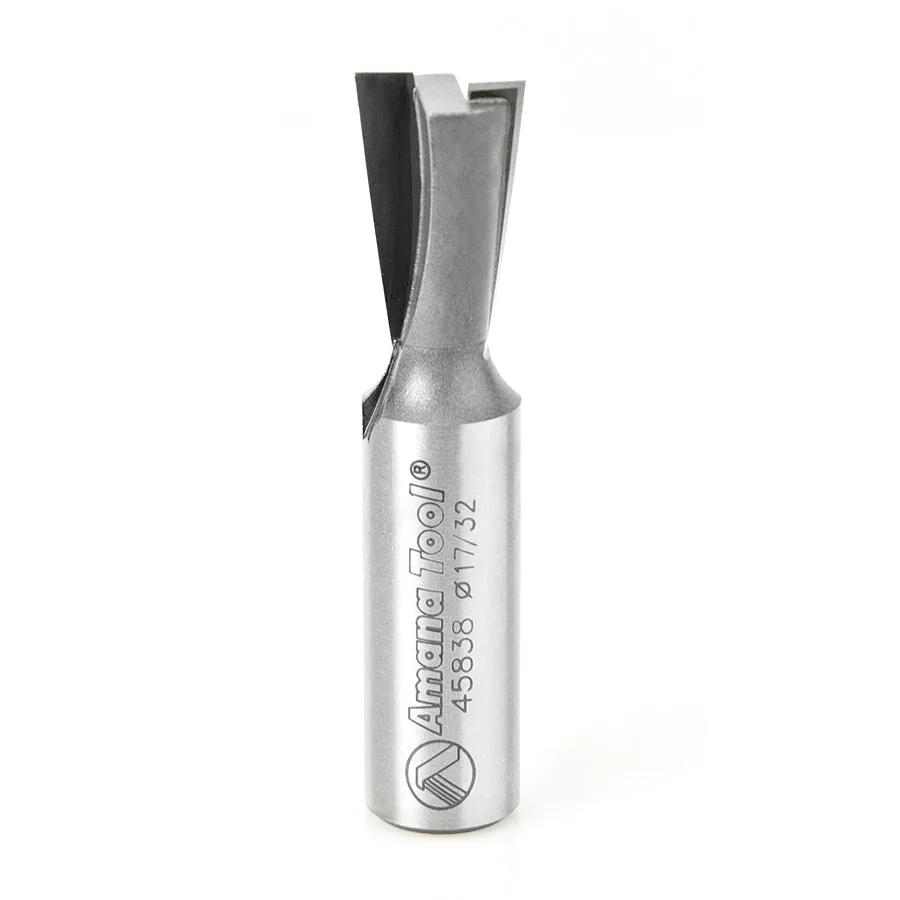

Jointing Router Bits: Dovetail Router Bits: 7° x 17/32″ Dia x 13/16″ x 1/2″ Shank
Industrial quality carbide tipped bits for the Porter Cable Jig 4210 and 4212.
Standard Equipment:
45837 Dovetail Router Bit
Specifications:
Diameter (D): 17/32″
Angle (a°): 7°
Cutting Height (B): 13/16″
Shank (d): 1/2″
Overall Length (L): 2-3/8″
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
