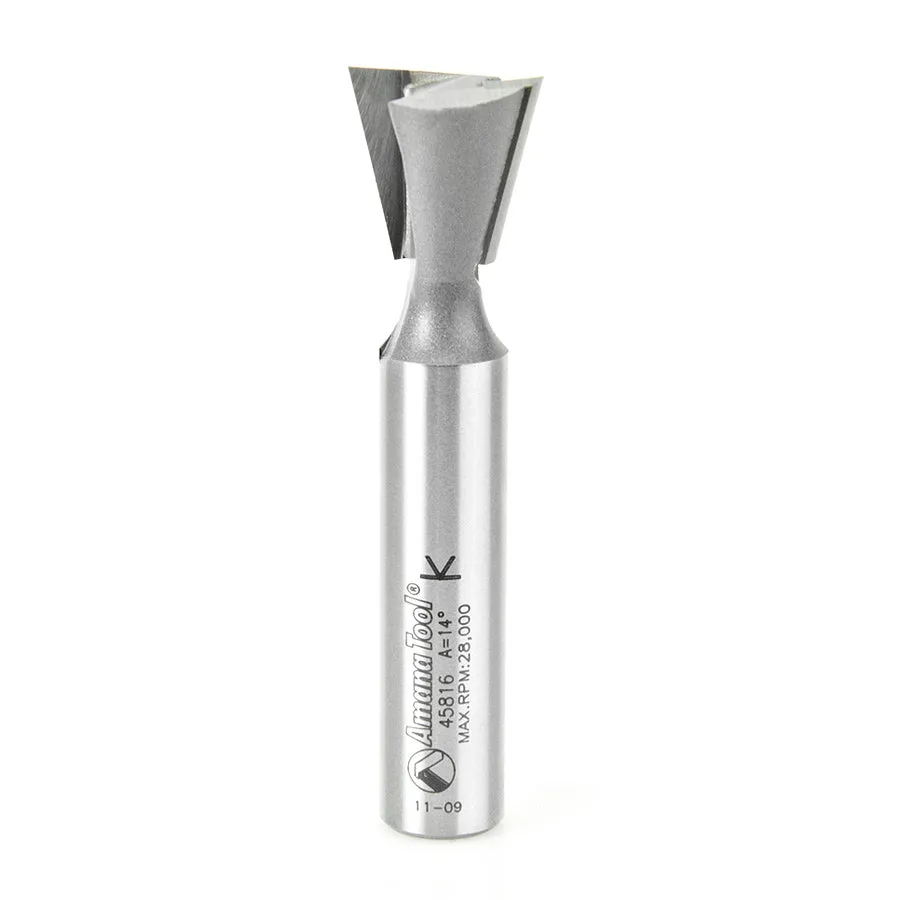

Jointing Router Bits: Dovetail Router Bits: 14° x 3/4″ Dia x 3/4″ x 1/2″ Shank
The 14° dovetail bit is used with common half-blind dovetail jigs, as well as with Omnijig, Incra and Leigh jigs.
Standard Equipment:
45816 Dovetail Router Bit
Specifications:
Diameter (D): 3/4″
Angle (a°): 14°
Cutting Height (B): 3/4″
Shank (d): 1/2″
Overall Length (L): 3″
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
