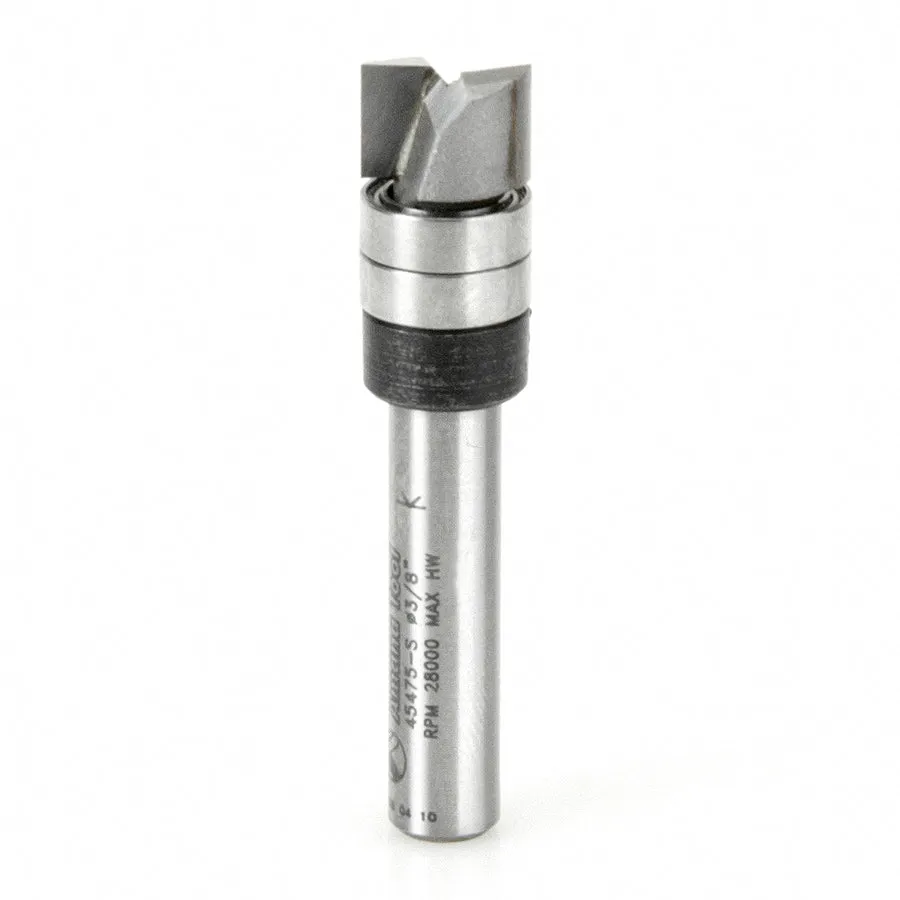

Trimming Router Bits > Flush Trim Plunge Template > Carbide Tipped, 3/8″ Dia x 1/4″ x 1/4″ Shank with 2 Upper Ball Bearings
This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
Standard Equipment:
(1) Flush Trim Plunge Template 3/8″ Diameter Router Bit (45475-S)
Specifications:
Diameter (D): 3/8″
Cutting Height (B): 1/4″
Shank (d): 1/4″
Overall Length (L): 1-3/4″
Flutes: 2
Replacement Collar: 47764
Replacement Bearing: 47751 (requires 2)
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
