Straight Plunge Router Bits: Undersized Plywood Dado Router Bits, Carbide Tipped: 15/32″ Dia x 1-1/4″ x 1/2″ Shank
Use a two-flute bit where fine finish is paramount. Two flutes balance the bit,eliminating vibration that degrades the cut finish. Two cuts per revolution yielda smooth surface, but feed rate is slightly reduced.
Standard Equipment:

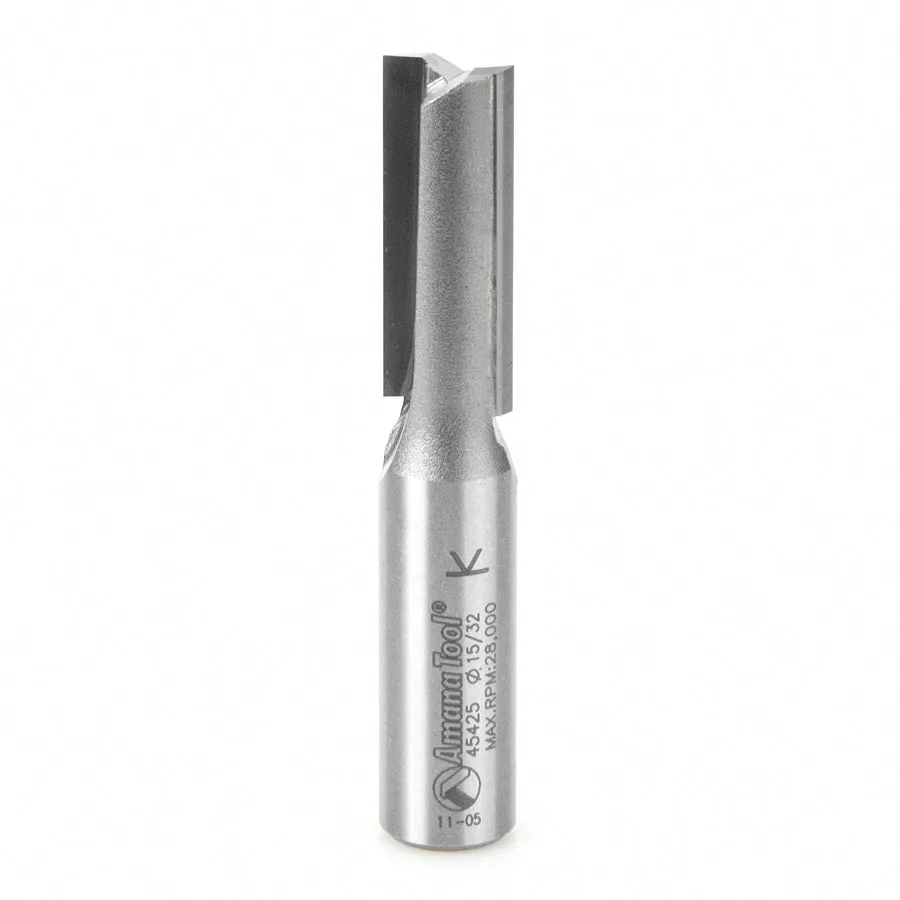

45425 Undersized Plywood Dado Router Bit
Specifications:
Diameter (D): 15/32″
Cutting Height (B): 1-1/4″
Shank (d): 1/2″
Overall Length (L): 2-7/8″
Flutes: 2
Plywood Thickness: 1/2″ minus 1/32″
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
